Technical Specifications
Emerson SDP1-48-100T technical specifications.
General
Current - Output 1
1A
Current Rating
1A
Efficiency
90%
Frequency
63Hz
Height
2.95inch
Length
91mm
Max Current Rating
1A
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Max Output Current
1.05A
Max Output Power
100W
Max Power Dissipation
50W
Mount
DIN Rail
Number of Outputs
1
Output Current
1A
Output Power
100W
Output Voltage
56V
Packaging
Bulk
Series
SDP
Voltage - Output 1
48V
Voltage Rating (AC)
264V
DC Rated Voltage
375V
Width
1.77inch
Compliance
RoHS
Compliant
Datasheet
Emerson SDP1-48-100T Datasheet
Download the complete datasheet for Emerson SDP1-48-100T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

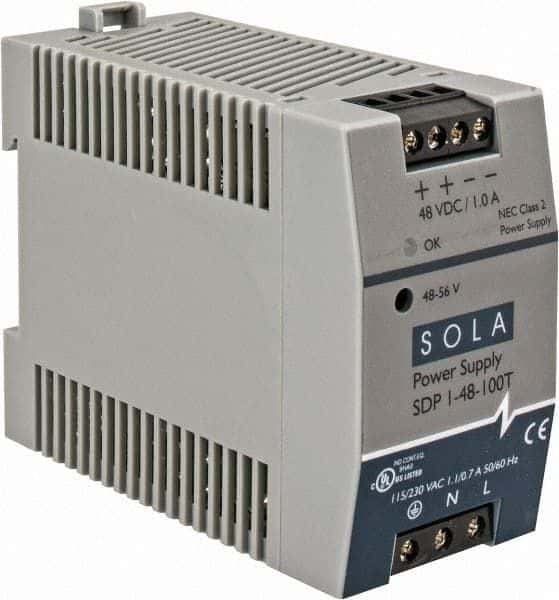

Product Images
