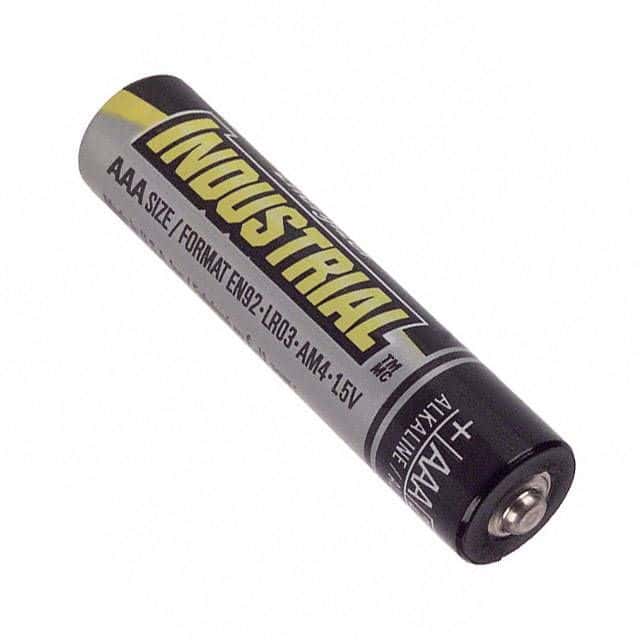

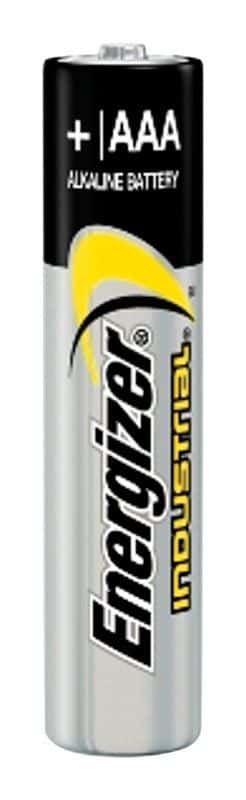

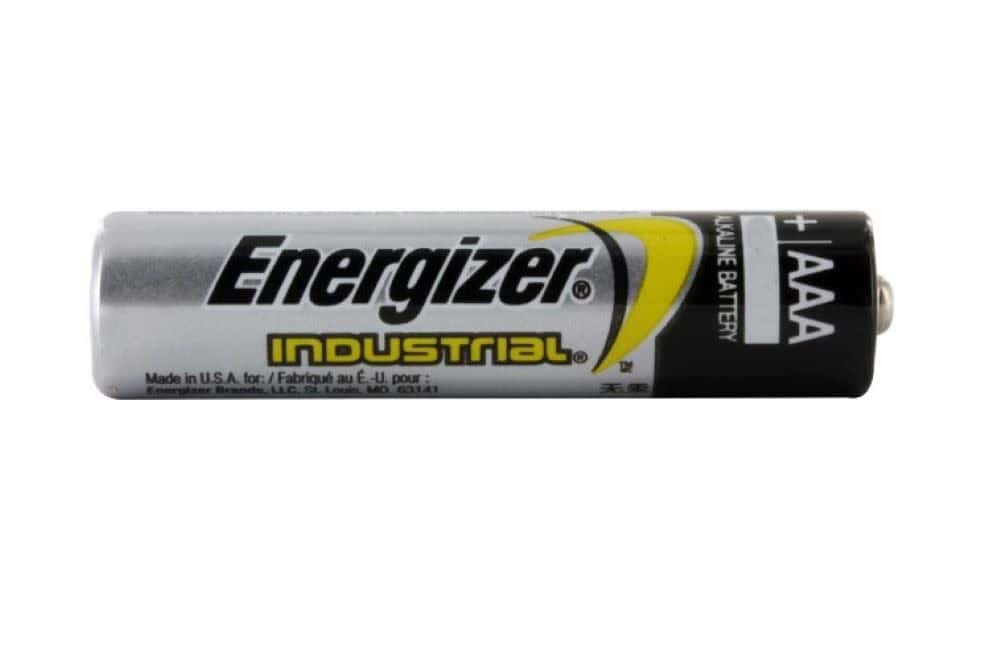

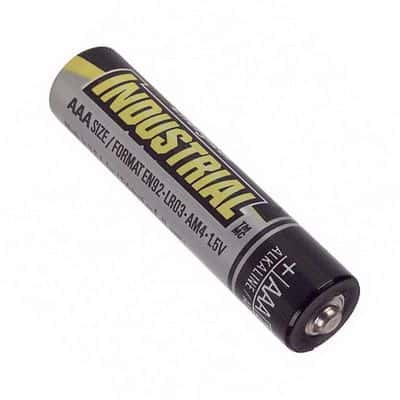

General purpose alkaline battery, 1.5V output voltage. Features alkaline manganese dioxide chemistry with a capacity of 1250mAh. Operates within a temperature range of -18°C to 55°C. Dimensions are 10.5mm diameter and 44.5mm length, with a button termination. This lead-free component weighs 11.4g and is Reach SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Energizer EN92 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Battery Chemistry | ALKALINE MANGANESE DIOXIDE |
| Capacity | 1250mAh |
| Chemistry/Technology | Alkaline |
| Diameter | 10.5mm |
| Lead Free | Lead Free |
| Length | 44.5mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -18°C |
| Output Voltage | 1.5V |
| Package Quantity | 144 |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | No |
| Series | EN92 |
| Termination | BUTTON |
| Voltage Rating | 1.5V |
| DC Rated Voltage | 1.5V |
| Weight | 11.4g |
| RoHS | Not Compliant |
Download the complete datasheet for Energizer EN92 to view detailed technical specifications.
