Round, flush-mount piezo buzzer with a 22.5mm diameter and 29mm outside diameter. Features brass construction with nickel plating, designed for 24VDC input and rated IP65 for water and dust resistance. Operates within a temperature range of -25°C to 55°C, with solder termination for secure connection.
MountingThrough Hole
Quick Jump:
Technical Specifications
EOZ 14-810.902 technical specifications.
General
Diameter
29mm
Height
38.5mm
Input Type
DC
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Supply Voltage
24V
Mount
Through Hole
Outside Diameter
29mm
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
14
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
EOZ 14-810.902 Datasheet
Download the complete datasheet for EOZ 14-810.902 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

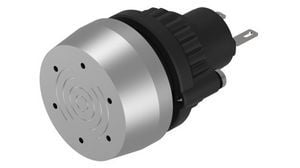

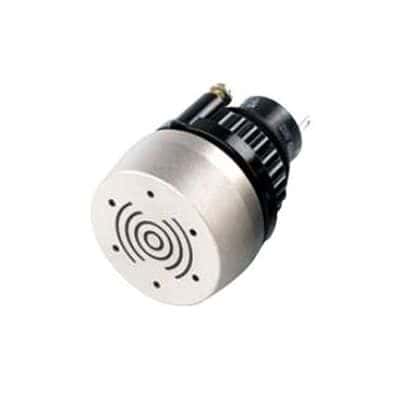

Product Images
