Illuminated pushbutton switch featuring a round button actuator and DPST-NC throw configuration. Rated for 5A current and 42VAC/VDC voltage, with a contact current rating of 100mA. Designed for front panel mounting with solder termination and a mechanical life of 1,000,000 cycles. Offers IP65, water-resistant, and dust-tight protection, operating between -25°C and 55°C.
Current Rating5A
MountingPanel, Front
Quick Jump:
Technical Specifications
EOZ 51-252.026 technical specifications.
General
Actuator Type
Round, Button
Contact Current Rating
100mA
Current Rating
5A
Max Operating Temperature
55°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Number of Positions
2
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
Reach SVHC Compliant
No
Series
51
Switch Function
On-Off
Termination
Solder
Throw Configuration
DPST
Voltage Rating (AC)
42V
DC Rated Voltage
42V
Compliance
RoHS
Compliant
Datasheet
EOZ 51-252.026 Datasheet
Download the complete datasheet for EOZ 51-252.026 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

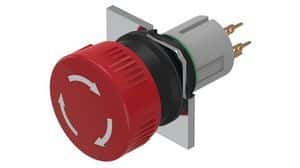

Product Images
