Illuminated pushbutton switch featuring a round, red button actuator. This SPST switch offers a 250V AC voltage rating and a 200mA current rating, with a nominal supply current of 3A. Designed for panel mounting with quick connect termination, it boasts IP65, water-resistant, and dust-tight ratings. Electrical and mechanical life expectancy is 50,000 cycles, operating within a temperature range of -25°C to 65°C. Approvals include IEC and EN standards.
Current Rating200mA
MountingPanel, Front
Quick Jump:
Technical Specifications
EOZ 84-5020.0020 technical specifications.
General
Actuator Type
Round, Button
Approvals
IEC, EN
Color
Red
Current Rating
200mA
Electrical Life
50000Cycles
Max Operating Temperature
65°C
Mechanical Life
50000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Nominal Supply Current
3A
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
Reach SVHC Compliant
No
Series
84
Switch Function
On-Off
Termination
Quick Connect
Throw Configuration
SPST
Voltage Rating (AC)
250V
Compliance
RoHS
Not Compliant
Datasheet
EOZ 84-5020.0020 Datasheet
Download the complete datasheet for EOZ 84-5020.0020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

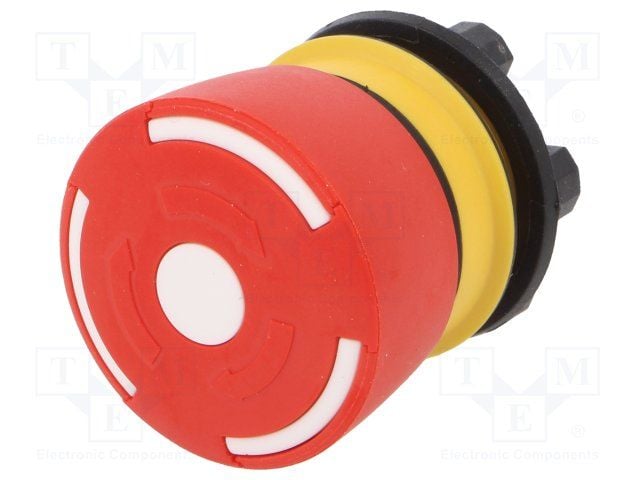

Product Images
