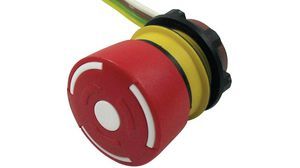

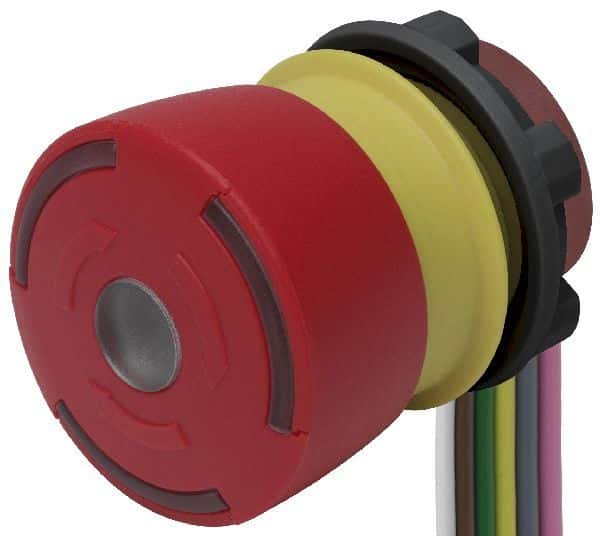

Illuminated pushbutton switch featuring a 32mm round red button actuator. This emergency stop switch offers a 1NC (Normally Closed) contact configuration with a 250V AC/DC voltage rating and a 200mA current rating. Designed for panel mounting with cable lead termination, it boasts IP65, water-resistant, and dust-tight ratings. Operating within a -25°C to 65°C temperature range, the switch provides 50,000 cycles of electrical and mechanical life.
Current Rating200mA
MountingPanel, Front
Quick Jump:
Technical Specifications
EOZ 84-5020.0040 technical specifications.
General
Actuator Diameter
32mm
Actuator Type
Round, Button
Approvals
IEC, EN
Color
Red
Current Rating
200mA
Electrical Life
50000Cycles
Max Operating Temperature
65°C
Mechanical Life
50000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Nominal Supply Current
3A
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
Reach SVHC Compliant
No
Series
84
Switch Function
On-Off
Termination
Cable Leads
Throw Configuration
SPST
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
EOZ 84-5020.0040 Datasheet
Download the complete datasheet for EOZ 84-5020.0040 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
