EOZ
84-5021.2B20
Switch; E-Stop; 1NC; Maint; Twist-to-Unlock; Illum; LED; Red; IP65; 32mm; 5A; 250VAC; Plug
MountingPanel, Front
Quick Jump:
Technical Specifications
EOZ 84-5021.2B20 technical specifications.
General
Actuator Type
Round, Button
Approvals
IEC, EN
Color
Black
Electrical Life
50000Cycles
Illumination Type
LED
Max Operating Temperature
65°C
Mechanical Life
50000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Nominal Supply Current
3A
Number of Poles
1
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
Series
84
Switch Function
On-Off
Termination
Quick Connect
Throw Configuration
SPST
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
EOZ 84-5021.2B20 Datasheet
Download the complete datasheet for EOZ 84-5021.2B20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

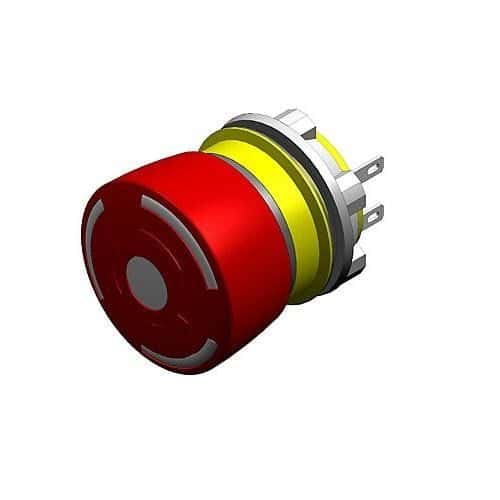

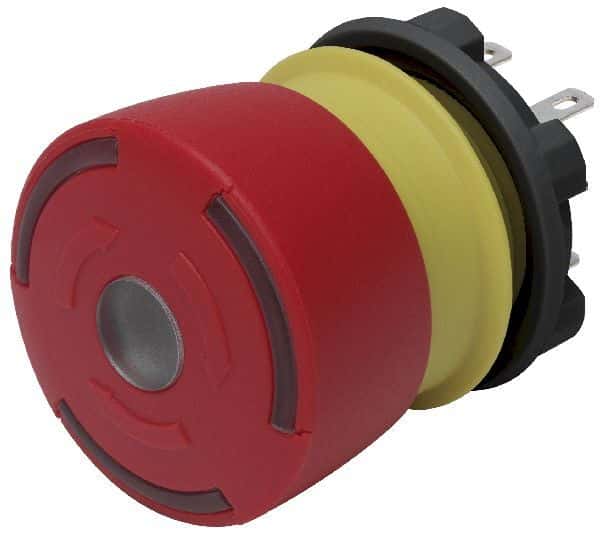

Product Images
