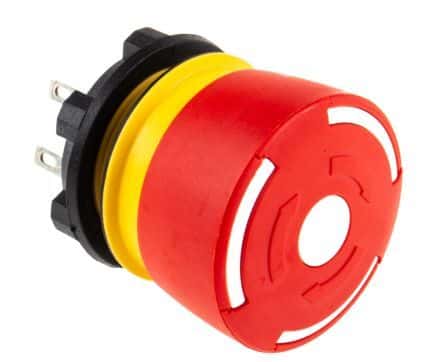

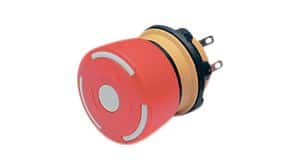

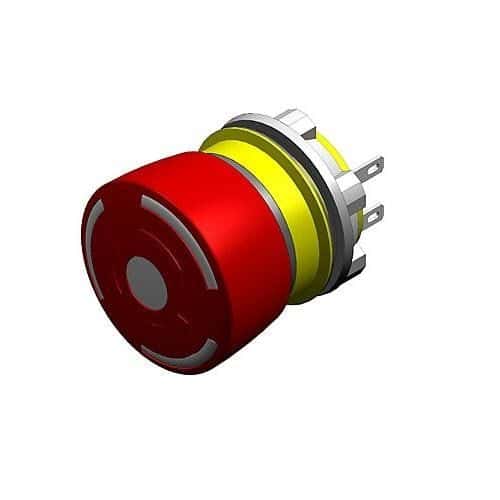

Industrial pushbutton switch featuring a 32mm round button actuator. This SPST-1NO/1NC, On-Off switch offers quick connect and solder termination with a maximum current rating of 3A at 250V AC/DC. Constructed with gold and silver contact materials, it boasts an electrical and mechanical life of 50,000 cycles. Rated IP65 for water and dust resistance, it operates within a temperature range of -25°C to 65°C and mounts to panels from the front.
Current Rating200mA
MountingPanel, Front
Quick Jump:
Technical Specifications
EOZ 84-5030.0020 technical specifications.
General
Actuator Diameter
32mm
Actuator Type
Round, Button
Approvals
IEC, EN
Color
Red, Black
Contact Material
Gold, Silver
Contact Plating
Silver
Current Rating
200mA
Depth
9.5mm
Electrical Life
50000Cycles
Head Diameter
32mm
Max Current Rating
3A
Max Operating Temperature
65°C
Mechanical Life
50000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Nominal Supply Current
3A
Operating Supply Voltage
250V
Outside Diameter
32mm
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
Reach SVHC Compliant
No
Series
84
Termination
Quick Connect
Throw Configuration
DPST
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Not Compliant
Datasheet
EOZ 84-5030.0020 Datasheet
Download the complete datasheet for EOZ 84-5030.0020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
