Industrial pushbutton switch featuring a 32mm round red actuator with SPST-1NO/1NC, On-Off functionality. Rated for 3A at 250V AC/DC, this switch offers a robust electrical life of 50,000 cycles and a mechanical life of 50,000 cycles. Panel-mounted with cable lead termination, it boasts IP65, water-resistant, and dust-tight ratings, suitable for demanding environments.
Current Rating200mA
MountingPanel, Front
Quick Jump:
Technical Specifications
EOZ 84-5030.0040 technical specifications.
General
Actuator Diameter
32mm
Actuator Type
Round, Button
Approvals
IEC, EN
Color
Red
Contact Current Rating
3A
Contact Material
Gold, Silver
Current Rating
200mA
Depth
9.5mm
Electrical Life
50000Cycles
Head Diameter
32mm
Length
300mm
Max Operating Temperature
65°C
Mechanical Life
50000Cycles
Mount
Panel, Front
Nominal Supply Current
3A
Number of Positions
2
Operating Supply Voltage
250V
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
Reach SVHC Compliant
No
Series
84
Termination
Cable Leads
Throw Configuration
DPST
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
EOZ 84-5030.0040 Datasheet
Download the complete datasheet for EOZ 84-5030.0040 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

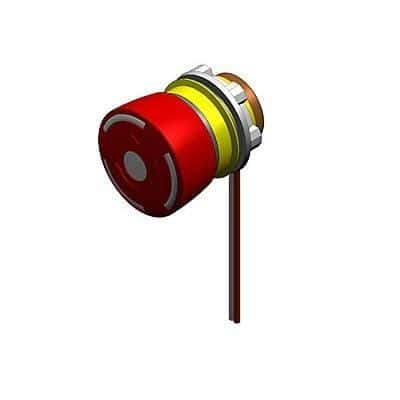

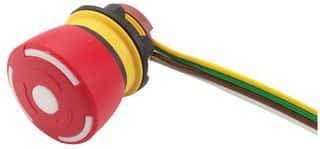

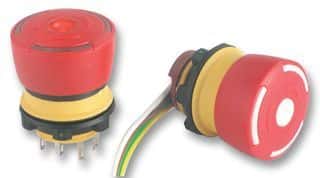

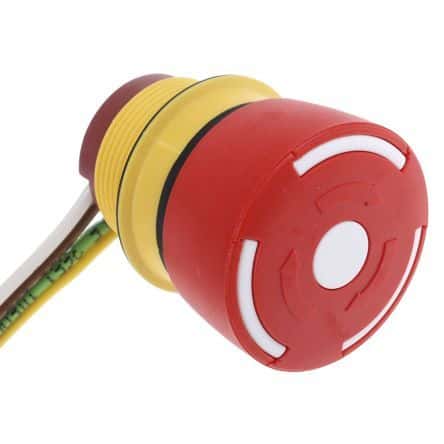

Product Images
