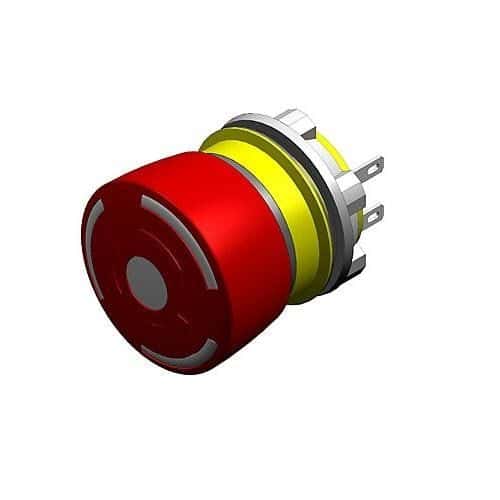

Industrial pushbutton switch featuring DPST On-Off function with quick connect and solder termination. Rated for 3A at 250V AC/DC, this switch offers a 200mA current rating and a silver contact material. Designed for panel mounting with a 32mm round button actuator, it boasts IP65, water-resistant, and dust-tight ratings. Operating temperature range is -25°C to 65°C, with both electrical and mechanical life rated at 50,000 cycles.
Current Rating200mA
MountingPanel, Front
Quick Jump:
Technical Specifications
EOZ 84-5040.0020 technical specifications.
General
Actuator Diameter
32mm
Actuator Type
Round, Button
Approvals
IEC, EN
Color
Red
Contact Material
Silver
Current Rating
200mA
Depth
9.5mm
Electrical Life
50000Cycles
Head Diameter
32mm
Max Operating Temperature
65°C
Mechanical Life
50000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Nominal Supply Current
3A
Operating Supply Voltage
250V
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
Reach SVHC Compliant
No
Series
84
Switch Function
On-Off
Termination
Quick Connect
Throw Configuration
DPST
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Not Compliant
Datasheet
EOZ 84-5040.0020 Datasheet
Download the complete datasheet for EOZ 84-5040.0020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
