Illuminated pushbutton switch featuring a round, green button actuator. This DPST switch offers a 250V AC/DC voltage rating and a 3A nominal supply current, with both electrical and mechanical life rated at 50,000 cycles. Designed for panel mounting with quick connect termination, it boasts IP65 and IP67 ratings for water and dust resistance. Approvals include IEC and EN standards, and it operates within a temperature range of -25°C to 65°C.
MountingPanel, Front
Quick Jump:
Technical Specifications
EOZ 84-5041.2B20 technical specifications.
General
Actuator Type
Round, Button
Approvals
IEC, EN
Color
Green
Electrical Life
50000Cycles
Illumination Type
LED
Max Operating Temperature
65°C
Mechanical Life
50000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Nominal Supply Current
3A
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight, IP67
Reach SVHC Compliant
No
Series
84
Switch Function
On-Off
Termination
Quick Connect
Throw Configuration
DPST
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
EOZ 84-5041.2B20 Datasheet
Download the complete datasheet for EOZ 84-5041.2B20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

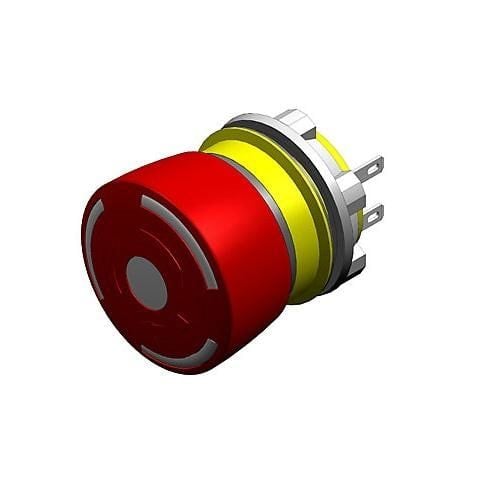

Product Images
