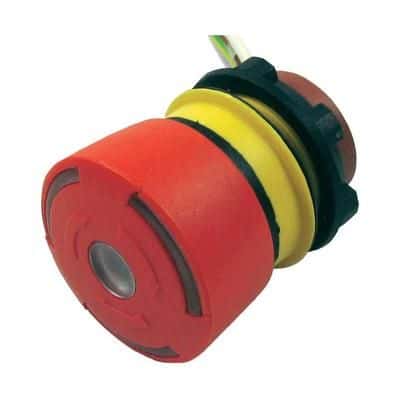

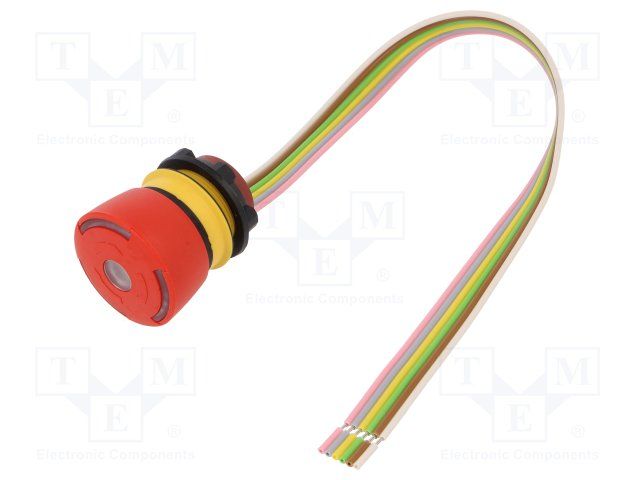

Illuminated pushbutton switch featuring a 32mm red LED-illuminated round button actuator. This DPST switch offers 2 normally closed (2NC) contacts and a twist-to-unlock maintained function. Rated for 5A at 250VAC, it boasts an electrical and mechanical life of 50,000 cycles. Designed for panel mounting with cable lead termination, it provides IP65, water-resistant, and dust-tight protection, operating between -25°C and 65°C.
MountingPanel, Front
Quick Jump:
Technical Specifications
EOZ 84-5041.2B40 technical specifications.
General
Actuator Type
Round, Button
Approvals
IEC, EN
Color
Red, Green, Yellow
Contact Type
2 breakers
Depth
9.5mm
Electrical Life
50000Cycles
Head Diameter
32mm
Illumination Type
LED
Max Operating Temperature
65°C
Mechanical Life
50000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Nominal Supply Current
3A
Operating Supply Voltage
250V
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
Series
84
Switch Function
On-Off
Termination
Cable Leads
Throw Configuration
DPST
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
EOZ 84-5041.2B40 Datasheet
Download the complete datasheet for EOZ 84-5041.2B40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
