Frequency50MHz
PackageSMD/SMT
Current Rating2.6mA
MountingSurface Mount
Quick Jump:
Technical Specifications

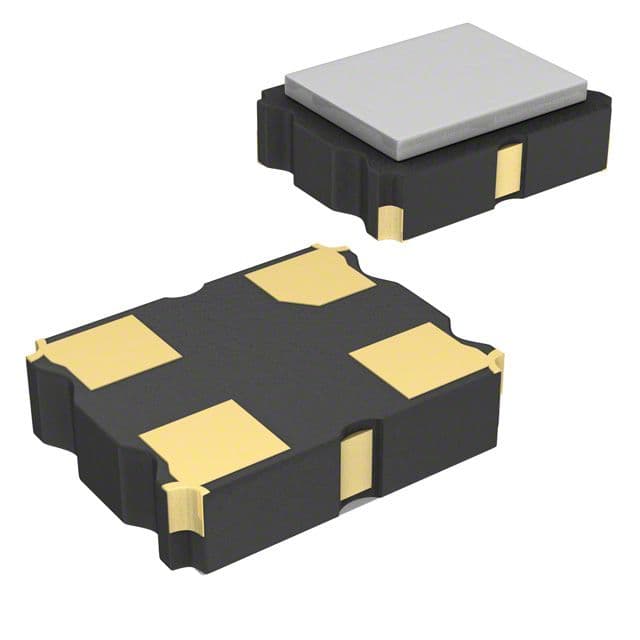

Epson SG-210STF 50.0000MS3 technical specifications.
General
Package/Case
SMD/SMT
Current Rating
2.6mA
Frequency
50MHz
Frequency Stability
25ppm
Height
0.8mm
Lead Free
Lead Free
Length
2.5mm
Load Capacitance
15pF
Max Duty Cycle
55%
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Supply Current
2.6mA
Max Supply Voltage
3.6V
Min Supply Voltage
1.6V
Mount
Surface Mount
Package Quantity
250
Packaging
Tape and Reel
Series
SG-210STF
Termination
SMD/SMT
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Epson SG-210STF 50.0000MS3 Datasheet
Download the complete datasheet for Epson SG-210STF 50.0000MS3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
