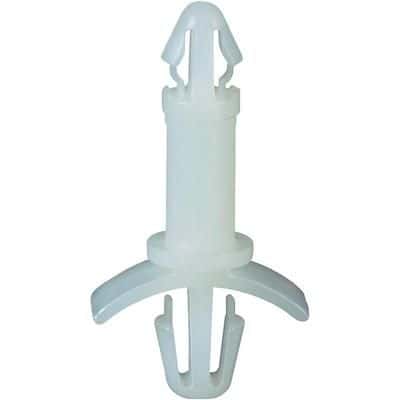

Snap-lock spacer with a 12.7mm body height and 0.5-inch length. Features a 0.28-inch diameter and 5.6mm width, designed for snap-in mounting into a 4.8mm mounting hole. Constructed from Nylon 6/6 and PVC, this component offers a UL94 V-2 flammability rating and is lead-free. Suitable for PCB thicknesses of 1.57mm, available in natural and clear colors.
MountingSnap in
Quick Jump:
Technical Specifications
Essentra LCBS-8-01 technical specifications.
General
Body Height
12.7mm
Color
Natural, Clear
Diameter
0.28inch
Flammability Rating
UL94 V-2
Height
12.7mm
Lead Free
Lead Free
Length
0.5inch
Material
Nylon, PVC
Mount
Snap in
Mounting Hole Diameter
4.8mm
PCB Thickness
1.57mm
Reach SVHC Compliant
No
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Essentra LCBS-8-01 Datasheet
Download the complete datasheet for Essentra LCBS-8-01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
