Everlight
ITR9608-F
Transistor Output Slotted Switch, 1-Channel, 5mm Slot Width, ROHS COMPLIANT PACKAGE-4
MountingThrough Hole
Quick Jump:
Technical Specifications
Everlight ITR9608-F technical specifications.
General
Collector Emitter Breakdown Voltage
30V
Lead Free
Lead Free
Max Collector Current
20mA
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Output Current
20mA
Mount
Through Hole
Output Configuration
Phototransistor
Package Quantity
35
Packaging
Bulk
Response Time
15us
RoHS Compliant
Yes
Wavelength
940nm
Compliance
RoHS
Compliant
Datasheet
Everlight ITR9608-F Datasheet
Download the complete datasheet for Everlight ITR9608-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

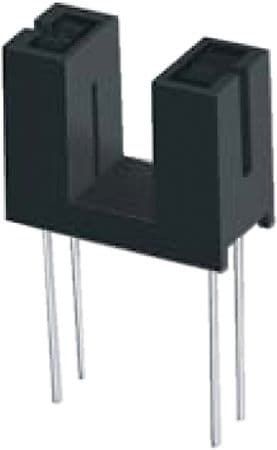

Product Images
