PackageSMD/SMT
MountingSurface Mount
PolarityNPN
Power75mW
Quick Jump:
Technical Specifications
Everlight PT91-21B/TR7 technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Breakdown Voltage
30V
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
30V
Collector-emitter Voltage-Max
30V
Fall Time
15us
Lens Color
Black
Lens Style
Domed
Max Breakdown Voltage
30V
Max Collector Current
20mA
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Power Dissipation
75mW
Mount
Surface Mount
Number of Elements
1
Orientation
Top View
Packaging
Tape and Reel
Polarity
NPN
Power Dissipation
75mW
Radiation Hardening
No
RoHS Compliant
Yes
Wavelength
940nm
Compliance
RoHS
Compliant
Datasheet
Everlight PT91-21B/TR7 Datasheet
Download the complete datasheet for Everlight PT91-21B/TR7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

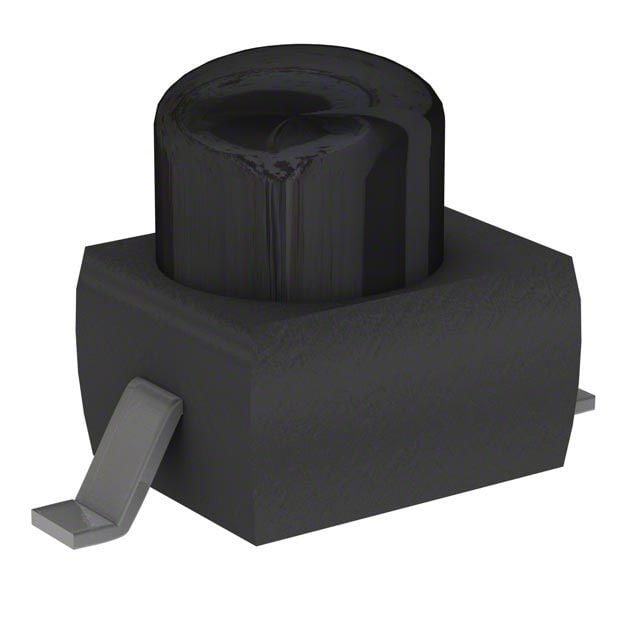

Product Images
