Ferrite chip filter for data lines, featuring a 0603 EIA standard package size. Offers 100 Ohms impedance at 100MHz, with a 400mA current rating and 150mR DC resistance. Designed for surface mount technology (SMT) with a 2-pin configuration, operating across a temperature range of -55°C to 125°C. This component is RoHS compliant.
Frequency100MHz
Package0603
Current Rating400mA
Quick Jump:
Technical Specifications
Fair-Rite 2506031017Y0 technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Current Rating
400mA
DC Current
400mA
DC Resistance (DCR)
150mR
Depth
0.8mm
Frequency
100MHz
Height
0.8mm
Impedance
100R
Length
1.6mm
Max Current Rating
400mA
Max DC Current
400mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Number of Lines
1
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Fair-Rite 2506031017Y0 Datasheet
Download the complete datasheet for Fair-Rite 2506031017Y0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

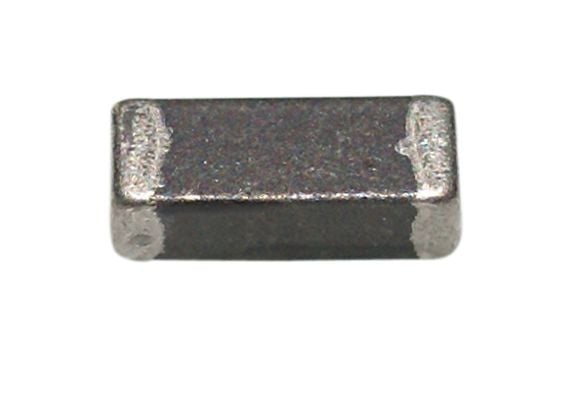

Product Images
