EMI/RFI ferrite chip for data lines, featuring a 1206 EIA standard package size (3.2mm L x 1.6mm W x 1.8mm D). This component offers 1A maximum DC current rating with 80mR DC resistance. It operates across a temperature range of -55°C to 125°C and provides 600 Ohms impedance at 100MHz. Designed for surface mount technology (SMT) termination, it is RoHS compliant and supplied in tape and reel packaging.
Package1206
Quick Jump:
Technical Specifications
Fair-Rite 2512066017Y1 technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
DC Current
1A
DC Resistance (DCR)
80mR
Depth
1.8mm
Height
1.1mm
Impedance
600R
Length
3.2mm
Max Current Rating
1A
Max DC Current
1A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Number of Lines
1
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
25%
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Fair-Rite 2512066017Y1 Datasheet
Download the complete datasheet for Fair-Rite 2512066017Y1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

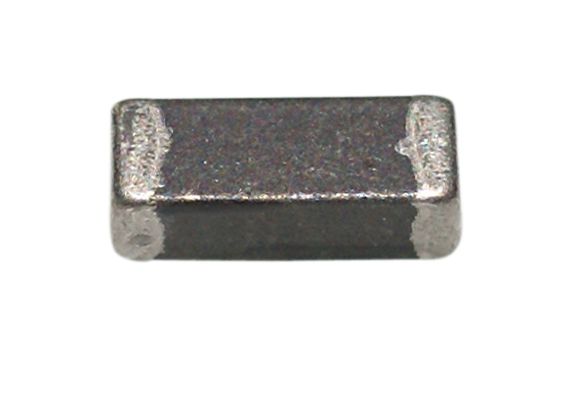

Product Images
