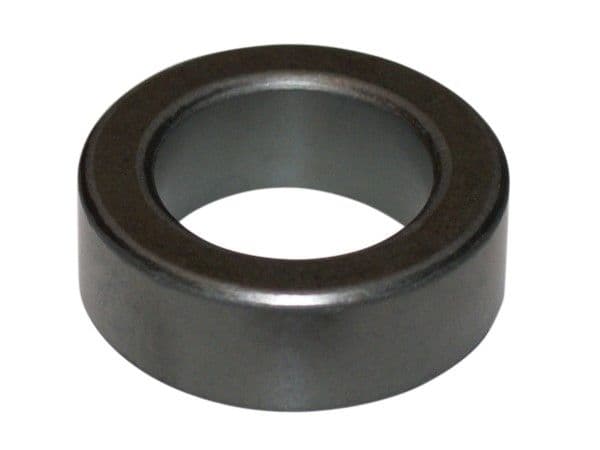

Toroidal ferrite core with 43 material properties, offering 885nH inductance with a 20% tolerance. Features a 35.55mm outside diameter, 23mm inside diameter, and 12.7mm height. Designed for surface-mount (SMD/SMT) applications and tested at 10kHz. Supplied in bulk packaging with 366 units per package.
Inductance885nH
Quick Jump:
Technical Specifications
Fair-Rite 5943002701 technical specifications.
General
Diameter
35.55mm
Height
12.7mm
Inductance
885nH
Inside Diameter
23mm
Outside Diameter
35.55mm
Package Quantity
366
Packaging
Bulk
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
10kHz
Compliance
RoHS
Compliant
Datasheet
Fair-Rite 5943002701 Datasheet
Download the complete datasheet for Fair-Rite 5943002701 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
