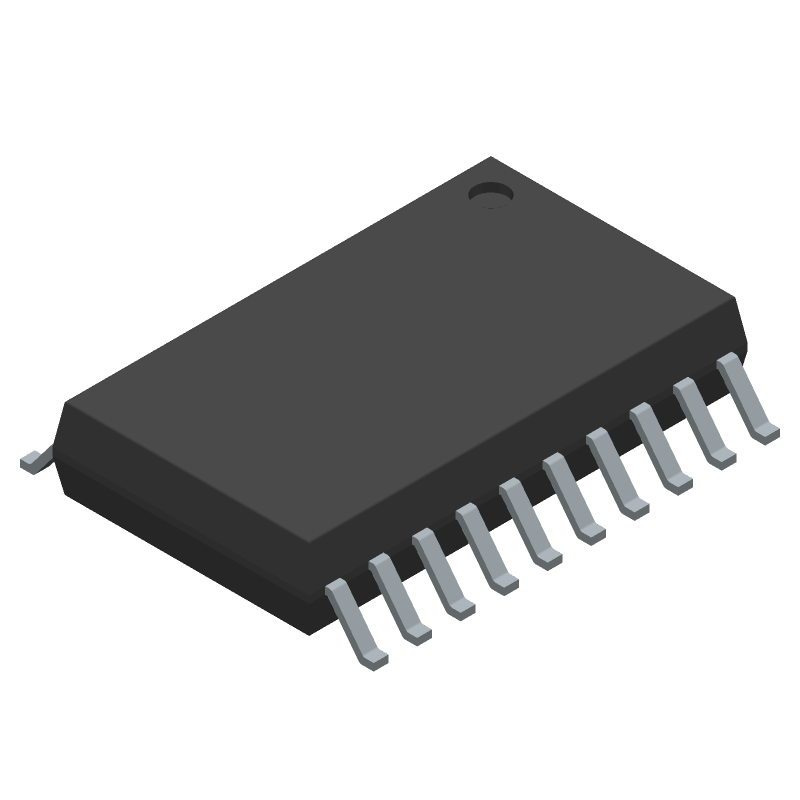

The Fairchild MM74HC541WMX is an industrial-grade bus driver IC with 20 terminals, operating within a temperature range of -40°C to 85°C. It has a propagation delay of 208ns and a supply voltage range of 2V to 6V. The device is packaged in a 20-pin SOP package and is suitable for use in logic IC applications, including buffers and line drivers.
Quick Jump:
Technical Specifications
Fairchild MM74HC541WMX technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 20 |
| Min Operating Temperature | -40 |
| Terminal Position | DUAL |
| JEDEC Package Code | R-PDSO-G20 |
| Width | 7.5 |
| Length | 12.8 |
| Pin Count | 20 |
| Number of Functions | 1 |
| Temperature Grade | INDUSTRIAL |
| Supply Voltage-Nom (Vsup) | 4.5 |
| Supply Voltage-Max (Vsup) | 6 |
| Supply Voltage-Min (Vsup) | 2 |
| Logic IC Type | BUS DRIVER |
| Family | HC/UH |
| Propagation Delay (tpd) | 208 |
| Number of Bits | 8 |
| Max I(ol) | 0.006 |
| Prop. Delay@Nom-Sup | 29 |
| Load Capacitance | 50 |
| Output Polarity | TRUE |
| Number of Ports | 2 |
| Control Type | ENABLE LOW |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| HTS Code | 8542.39.00.01 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Fairchild MM74HC541WMX Datasheet
Download the complete datasheet for Fairchild MM74HC541WMX to view detailed technical specifications.
