Technical Specifications
Fastron 0805AS-6N8J-01 technical specifications.
General
Package/Case
0805
Core Material
Ceramic
Height
1.6mm
Inductance
6.8nH
Length
2.3mm
Material
Ceramic
Max DC Current
600mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Package Quantity
2500
Packaging
Tape and Reel
Q Factor
50
Resistance
110mR
RoHS Compliant
Yes
Sample Rate (Hz)
250MHz
Self Resonant Frequency
5.5GHz
Series
0805AS
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
250MHz
Tolerance
5%
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Fastron 0805AS-6N8J-01 Datasheet
Download the complete datasheet for Fastron 0805AS-6N8J-01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

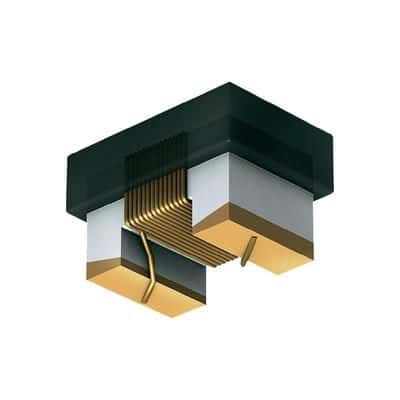

Product Images
