Technical Specifications
Fastron 1008AS-3R3K-01 technical specifications.
General
Package/Case
Molded
Core Material
Ceramic
Current Rating
120mA
Height
1mm
Inductance
3.3uH
Length
2.84mm
Max DC Current
110mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Package Quantity
2000
Packaging
Tape and Reel
Q Factor
22
RoHS Compliant
Yes
Self Resonant Frequency
110MHz
Series Resistance
5.1R
Shielding
Unshielded
Termination
SMD/SMT
Tolerance
10%
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Fastron 1008AS-3R3K-01 Datasheet
Download the complete datasheet for Fastron 1008AS-3R3K-01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

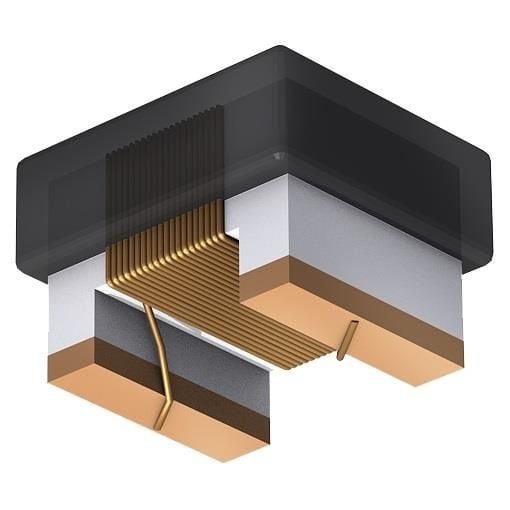

Product Images
