DPST-NO relay for power applications, featuring a 24V AC coil with 2.2W power consumption. Contacts are constructed from tin and silver, rated for 250 VAC. Mounts via DIN rail with screw termination. Operates within a temperature range of -20°C to 50°C.
MountingDIN Rail
Quick Jump:
Technical Specifications
Finder 22.32.0.024.4320 technical specifications.
General
Application(s)
POWER
Coil Power
2.2W
Coil Voltage (AC)
24V
Contact Material
Tin, Silver
Depth
60.8mm
Height
84mm
Length
17.5mm
Life (Hours)
30Hour
Max Operating Temperature
50°C
Min Operating Temperature
-20°C
Mount
DIN Rail
Number of Poles
2
Ratings
IP20
Reach SVHC Compliant
No
Termination
Screw
Throw Configuration
DPST
Compliance
RoHS
Compliant
Datasheet
Finder 22.32.0.024.4320 Datasheet
Download the complete datasheet for Finder 22.32.0.024.4320 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

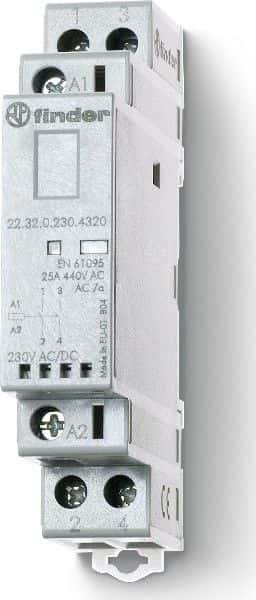

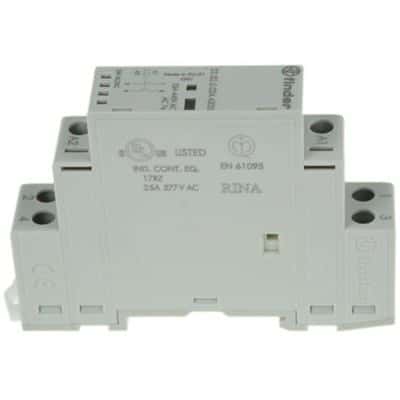

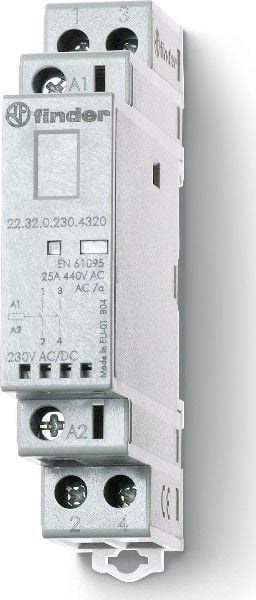

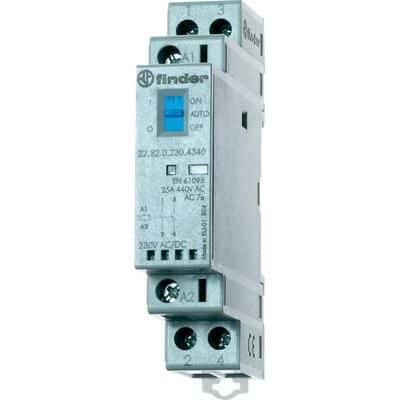

Product Images
