General purpose power relay featuring a Single Pole Double Throw (SPDT) contact configuration. Rated for 10A switching current and 250V AC switching voltage, with a maximum contact current rating of 15A. Operates with a 24V DC coil voltage, drawing 15mA and consuming 360mW of power. Contact material is Tin/Silver, and the relay is designed for PCB mounting with through-hole termination. Features an IP67 rating and operates within a temperature range of -40°C to 85°C.
Current Rating15A
MountingPCB
Quick Jump:
Technical Specifications
Finder 36.11.9.024.4011 technical specifications.
General
Application(s)
POWER
Coil Current
15mA
Coil Power
360mW
Coil Resistance
1.6kR
Coil Voltage (DC)
24V
Contact Current Rating
10A
Contact Material
Tin, Silver
Current Rating
15A
Depth
15.5mm
Height
15mm
Length
19mm
Life (Hours)
50Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.4W
Mount
PCB
Number of Contacts
5
Ratings
IP67
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Current
10A
Switching Voltage
250V
Termination
Through Hole
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
24V
Width
15.2mm
Compliance
RoHS
Compliant
Datasheet
Finder 36.11.9.024.4011 Datasheet
Download the complete datasheet for Finder 36.11.9.024.4011 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

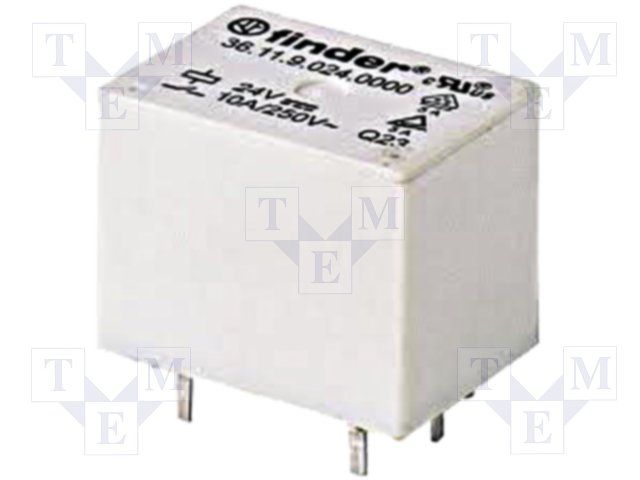

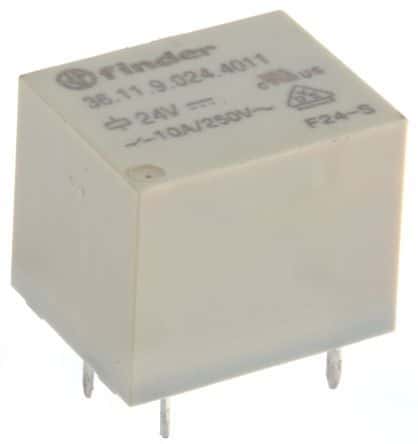

Product Images
