Technical Specifications
Finder 39.40.8.230.9024 technical specifications.
General
Package/Case
Module
Contact Type
SPST-NO
Depth
90.7mm
Height
90.7mm
Input Current
4.2mA
Length
94.3mm
Load Current
2A
Max Operating Temperature
55°C
Min Operating Temperature
-20°C
Max Supply Voltage (DC)
24V
Min Supply Voltage (DC)
1.5V
Max Voltage Rating (DC)
24V
Mount
DIN Rail
Operating Supply Voltage
24V
Ratings
IP20
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Current
2A
Termination
Screw
Throw Configuration
SPST
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Finder 39.40.8.230.9024 Datasheet
Download the complete datasheet for Finder 39.40.8.230.9024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

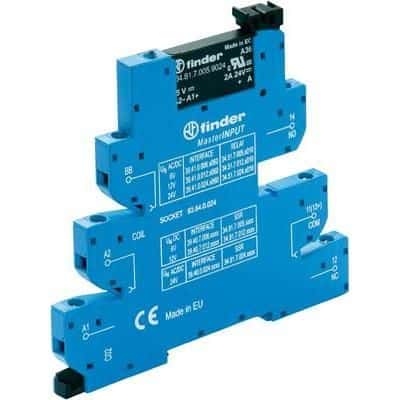

Product Images
