DPDT General Purpose Power Relay featuring a 12V DC coil with 42mA coil current, 500mW coil power, and 288 Ohm coil resistance. Contacts rated for 8A with Silver contact material. Designed for PCB mounting with Through Hole termination. Operating temperature range from -40°C to 85°C. Dimensions: 29mm length, 12.4mm width, and 25mm height.
MountingPCB
Quick Jump:
Technical Specifications
Finder 40.52.7.012.0000 technical specifications.
General
Coil Current
42mA
Coil Power
500mW
Coil Resistance
288R
Coil Voltage (DC)
12V
Contact Current Rating
8A
Contact Material
Silver
Depth
12.4mm
Height
25mm
Length
29mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
PCB
Reach SVHC Compliant
No
Relay Type
General Purpose
RoHS Compliant
Yes
Termination
Through Hole
Throw Configuration
DPDT
Width
12.4mm
Compliance
RoHS
Compliant
Datasheet
Finder 40.52.7.012.0000 Datasheet
Download the complete datasheet for Finder 40.52.7.012.0000 to view detailed technical specifications.
No datasheet is available for this part.

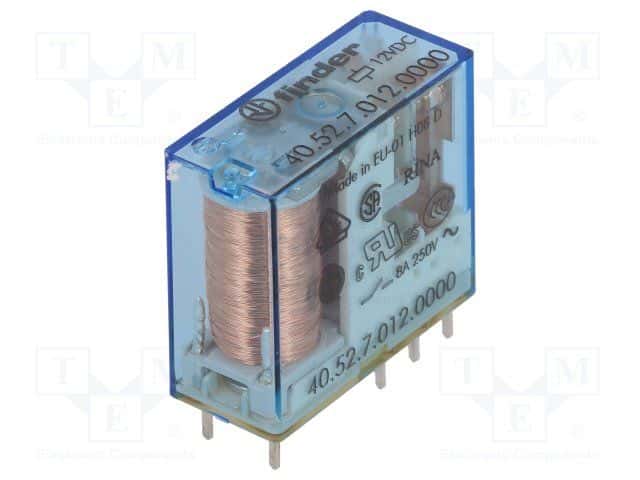

Product Images
