DPDT General Purpose Electromechanical Relay featuring a 24VDC coil with 21mA current draw and 500mW coil power. Contacts rated for 8A with silver material, suitable for AC output. Mounts via through-hole termination on a PCB, with dimensions of 29mm length, 12.4mm depth, and 25mm height. Operates within a temperature range of -40°C to 85°C.
MountingPCB
Quick Jump:
Technical Specifications
Finder 40.52.7.024.0000 technical specifications.
General
Coil Current
21mA
Coil Power
500mW
Coil Resistance
1.15kR
Coil Voltage (DC)
24V
Contact Current Rating
8A
Contact Material
Silver
Depth
12.4mm
Height
25mm
Length
29mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
PCB
Reach SVHC Compliant
No
Relay Type
General Purpose
RoHS Compliant
Yes
Termination
Through Hole
Throw Configuration
DPDT
Compliance
RoHS
Compliant
Datasheet
Finder 40.52.7.024.0000 Datasheet
Download the complete datasheet for Finder 40.52.7.024.0000 to view detailed technical specifications.
No datasheet is available for this part.

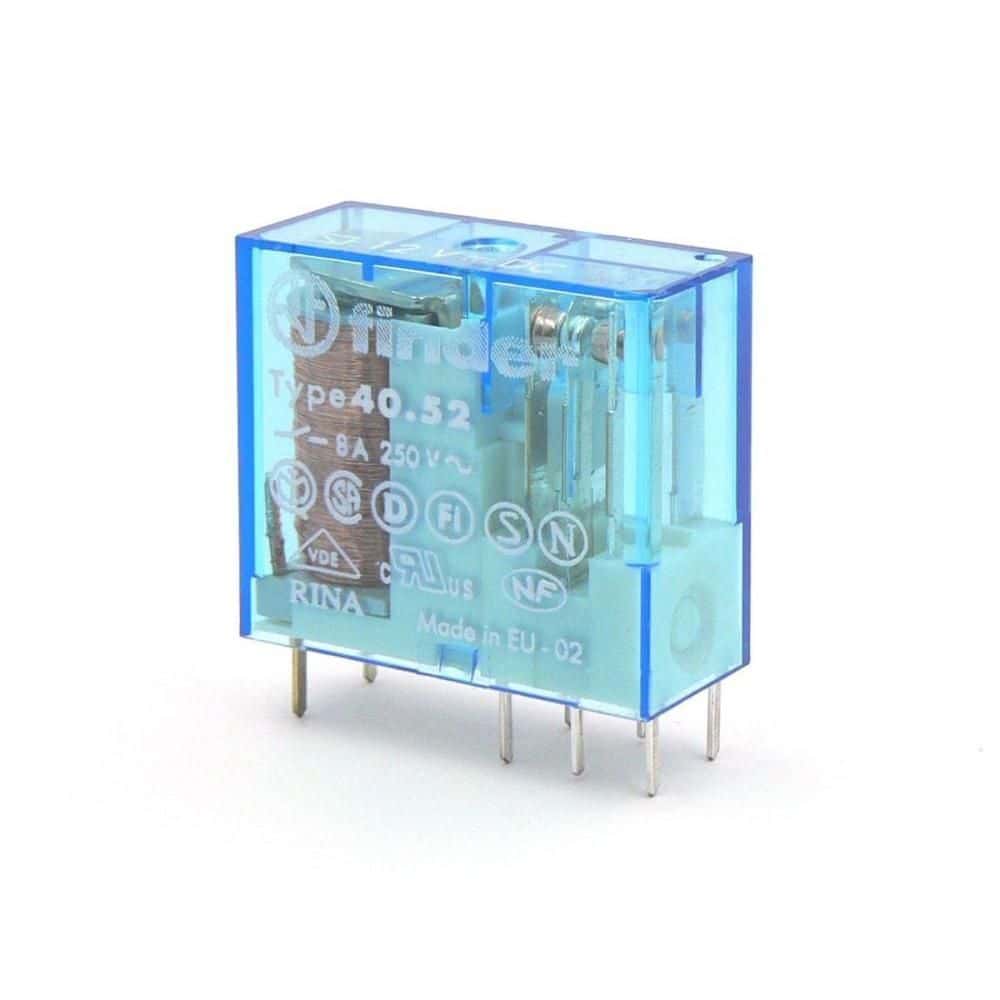

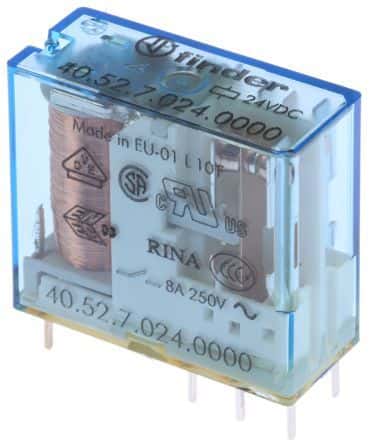

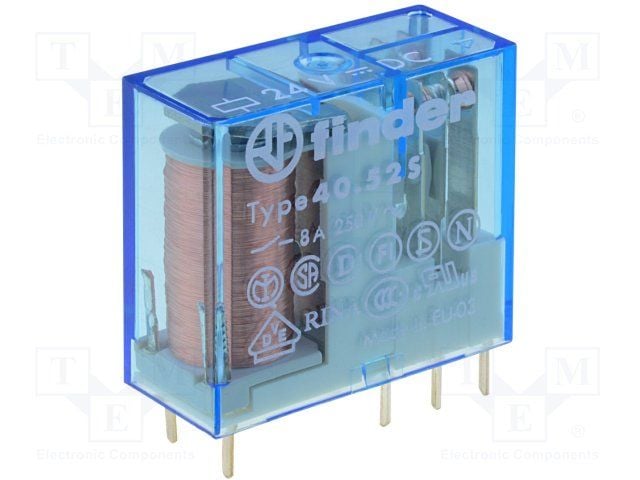

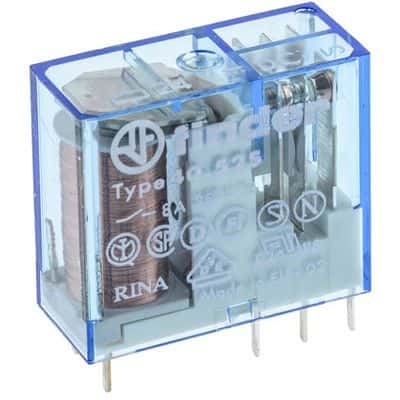

Product Images
