DPDT power relay with a 12VDC coil voltage and 55mA coil current, featuring 220 Ohm coil resistance. Offers 8A contact current rating with silver contact material and a DPDT throw configuration. Dimensions are 29mm length, 12.4mm width, and 25mm height. Operates within a temperature range of -40°C to 85°C and is IP40 rated.
Quick Jump:
Technical Specifications
Finder 40.52.9.012.0000 technical specifications.
General
Coil Current
55mA
Coil Resistance
220R
Coil Voltage (DC)
12V
Contact Current Rating
8A
Contact Material
Silver
Contact Type
2 change-overs
Height
25mm
Length
29mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Ratings
IP40
Reach SVHC Compliant
No
Relay Type
General Purpose
RoHS Compliant
Yes
Switching Current
8A
Throw Configuration
DPDT
Width
12.4mm
Compliance
RoHS
Compliant
Datasheet
Finder 40.52.9.012.0000 Datasheet
Download the complete datasheet for Finder 40.52.9.012.0000 to view detailed technical specifications.
No datasheet is available for this part.

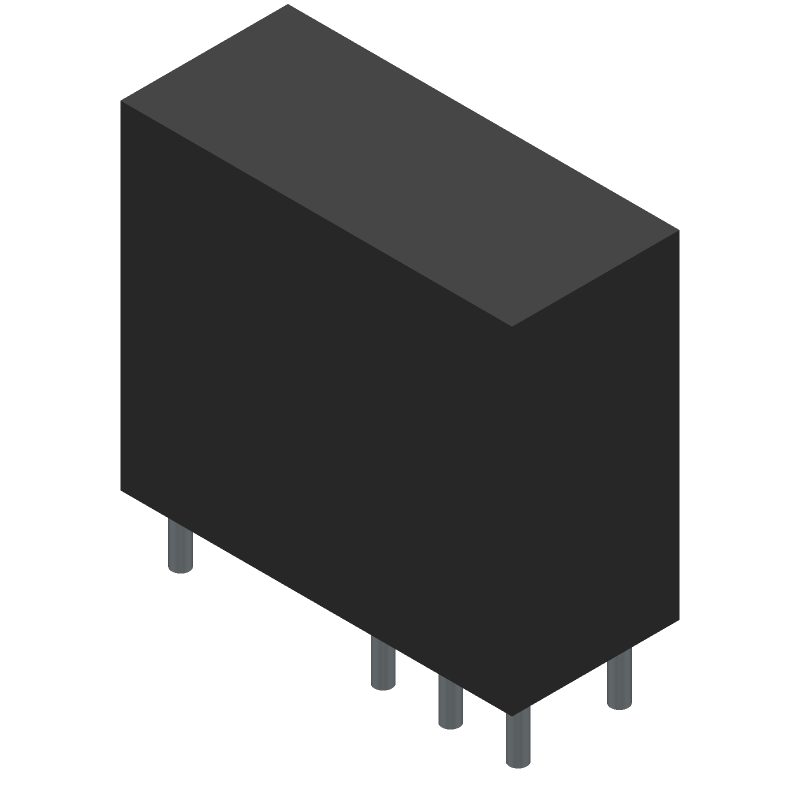

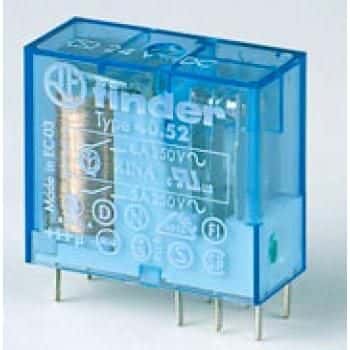

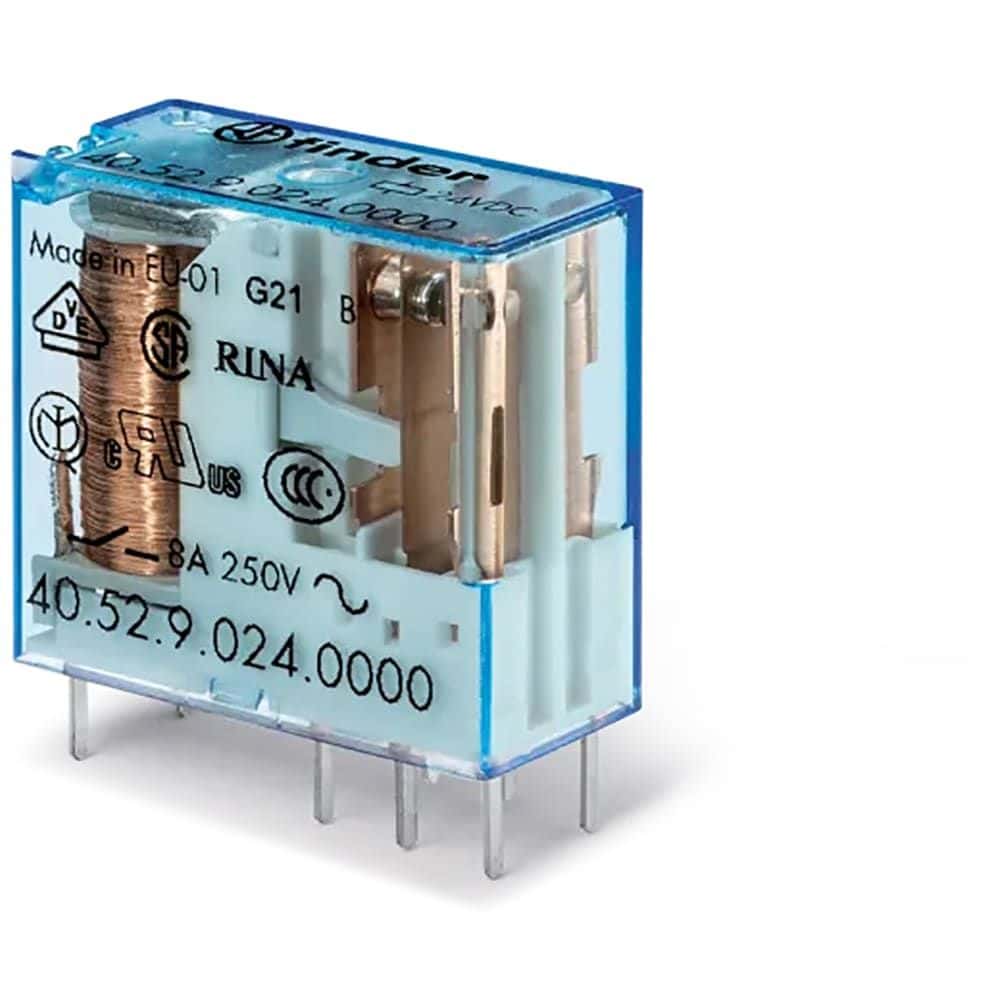

Product Images
