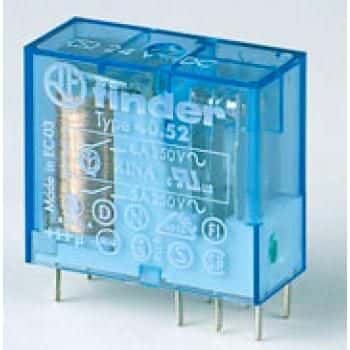

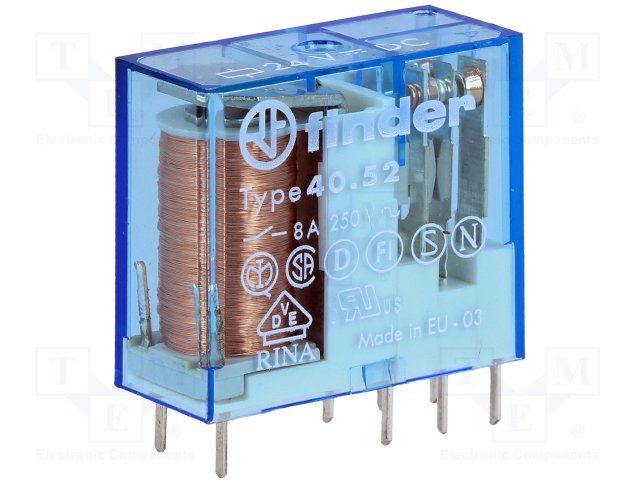

DPDT General Purpose Electromechanical Relay with 8A contact current rating. Features a 24VDC coil with 27mA coil current and 900 Ohm coil resistance, consuming 650mW. Designed for through-hole mounting with straight terminals. Operates across a temperature range of -40°C to 85°C and offers IP40 protection. RoHS compliant.
Quick Jump:
Technical Specifications
Finder 40.52.9.024.0000 technical specifications.
General
Coil Current
27mA
Coil Resistance
900R
Coil Voltage (DC)
24V
Contact Current Rating
8A
Contact Type
2 change-overs
Height
25mm
Length
29mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Current
8A
Throw Configuration
DPDT
Width
12.4mm
Compliance
RoHS
Compliant
