DPDT General Purpose Relay featuring a 24VDC coil with 20mA current and 500mW power consumption. Contacts rated for 8A with Silver material, offering a 1,000,000-hour mechanical life. Operates within a -40°C to 70°C temperature range. Designed for PCB mounting with screw termination.
MountingPCB
Quick Jump:
Technical Specifications
Finder 46.52.9.024.0074 technical specifications.
General
Coil Current
20mA
Coil Power
500mW
Coil Resistance
1.2kR
Coil Voltage (DC)
24V
Contact Current Rating
8A
Contact Material
Silver
Depth
12.4mm
Height
32.8mm
Length
29mm
Life (Hours)
10000000Hour
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
PCB
Reach SVHC Compliant
No
Relay Type
General Purpose
RoHS Compliant
Yes
Termination
Screw
Throw Configuration
DPDT
Compliance
RoHS
Compliant
Datasheet
Finder 46.52.9.024.0074 Datasheet
Download the complete datasheet for Finder 46.52.9.024.0074 to view detailed technical specifications.
No datasheet is available for this part.

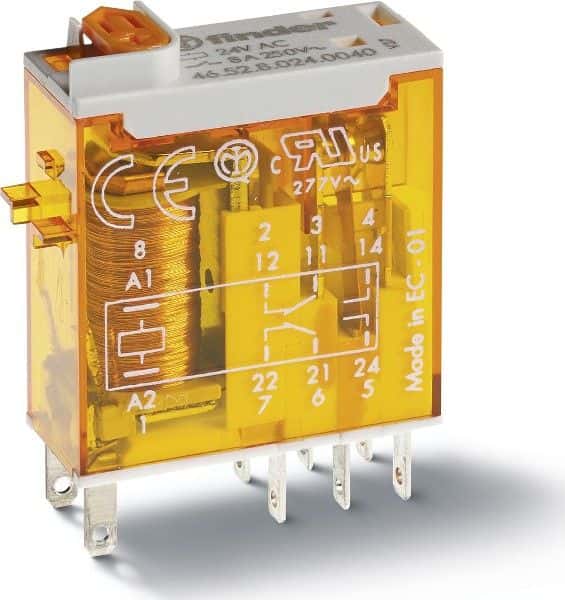

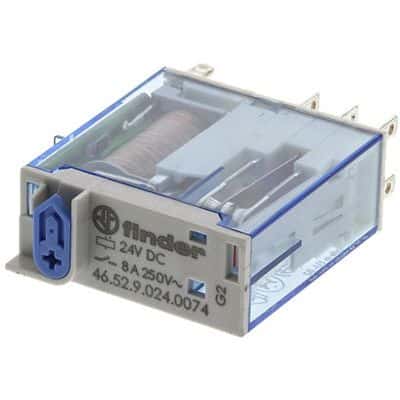

Product Images
