General purpose electromechanical relay featuring Single Pole Double Throw (SPDT) contact configuration. Coil operates at 26.4VDC with 500mW power consumption and 20mA current draw, boasting a 1.2kΩ resistance. Contacts rated for 16A switching current with Silver material, suitable for AC/DC output. Plug-in mount with quick connect termination, operating within a -40°C to 70°C temperature range.
MountingPlug-In
Quick Jump:
Technical Specifications
Finder 46.61.9.024.0040 technical specifications.
General
Application(s)
GENERAL PURPOSE
Coil Current
20mA
Coil Power
500mW
Coil Resistance
1.2kR
Coil Voltage (DC)
24V
Contact Current Rating
16A
Contact Material
Silver
Depth
12.4mm
Height
32.8mm
Length
29mm
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
Plug-In
Number of Poles
1
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Current
16A
Termination
Quick Connect
Throw Configuration
SPDT
Compliance
RoHS
Compliant
Datasheet
Finder 46.61.9.024.0040 Datasheet
Download the complete datasheet for Finder 46.61.9.024.0040 to view detailed technical specifications.
No datasheet is available for this part.

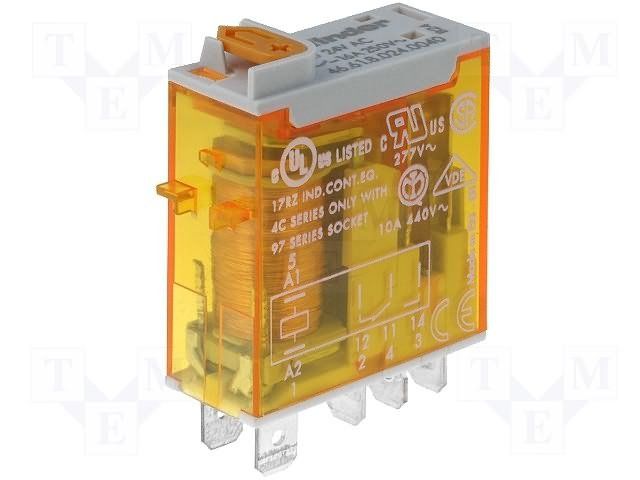

Product Images
