DPDT power relay with 24VDC coil voltage, 700mW coil power, and 820 Ohm coil resistance. Features 8A contact current rating with silver contact material and a 100,000-hour electrical life. Designed for PCB mounting with through-hole termination, operating across a -40°C to 70°C temperature range. Dimensions are 29x12.4x25mm.
MountingPCB
Quick Jump:
Technical Specifications
Finder 50.12.9.024.1000 technical specifications.
General
Coil Current
29.3mA
Coil Power
700mW
Coil Resistance
820R
Coil Voltage (DC)
24V
Contact Current Rating
8A
Contact Material
Silver
Contact Type
2 change-overs
Depth
12.4mm
Height
25mm
Length
29mm
Life (Hours)
100000Hour
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
PCB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Through Hole
Throw Configuration
DPDT
Width
12.4mm
Compliance
RoHS
Compliant
Datasheet
Finder 50.12.9.024.1000 Datasheet
Download the complete datasheet for Finder 50.12.9.024.1000 to view detailed technical specifications.
No datasheet is available for this part.

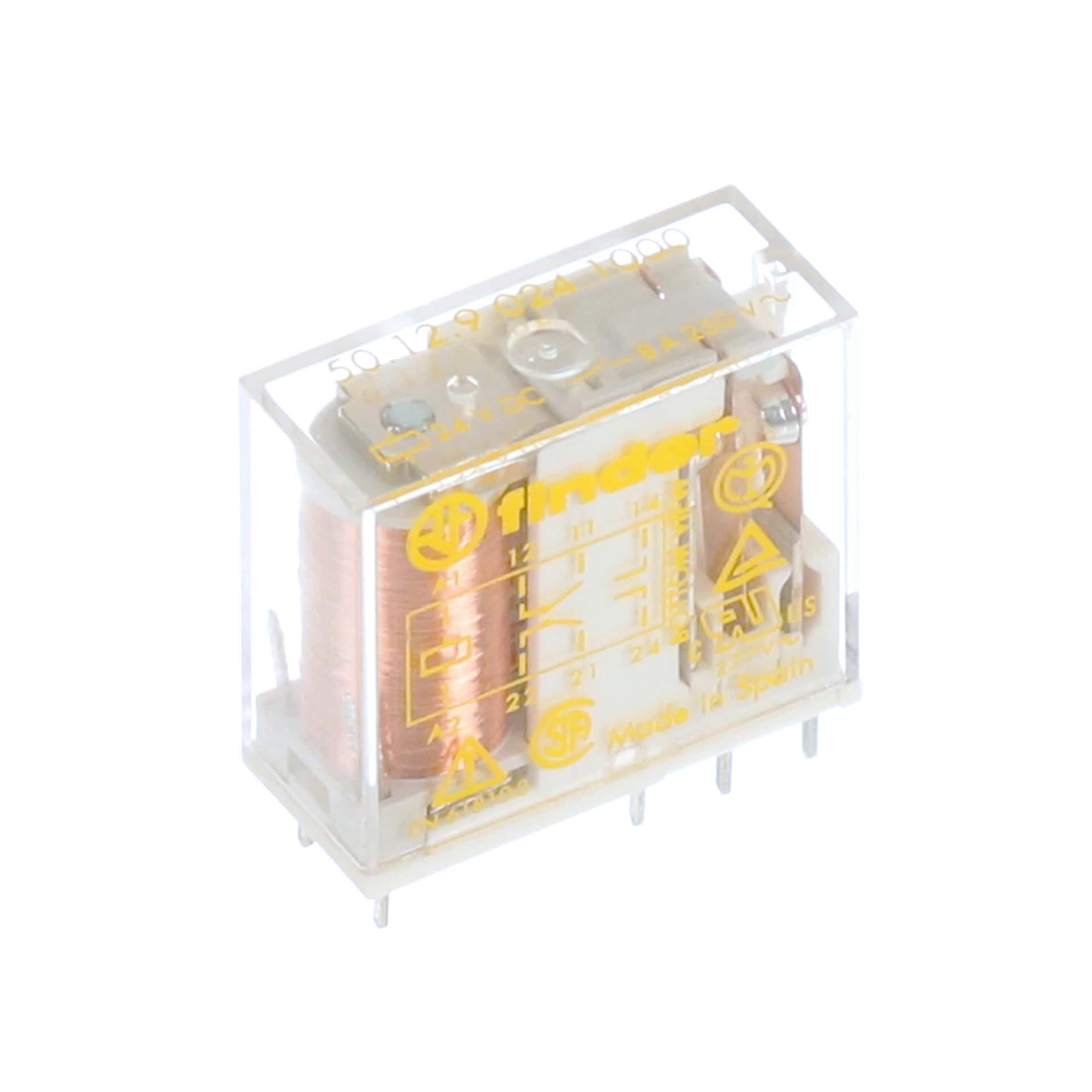

Product Images
