SPDT-CO analogue timer module with 1 changeover relay, offering 2 functions and 6 adjustable time ranges from 0.1 seconds to 24 hours. Features a 240V AC coil voltage and a maximum current rating of 30A, with a switching capacity of 55kW and switching current of 16A. Designed for DIN rail mounting, this module has screw termination and a compact width of 17.5mm, with dimensions of 84mm length, 60.8mm depth, and 60.8mm height. Operating temperature range is -10°C to 50°C, with IP20 protection rating.
PackageModule
MountingDIN Rail
Quick Jump:
Technical Specifications
Finder 80.91.0.240.0000 technical specifications.
General
Package/Case
Module
Coil Voltage (AC)
240V
Contact Material
Silver, Cadmium
Contact Type
SPDT-CO
Depth
60.8mm
Height
60.8mm
Length
84mm
Max Current Rating
30A
Max Operating Temperature
50°C
Min Operating Temperature
-10°C
Max Supply Voltage
240V
Mount
DIN Rail
Number of Contacts
1
Number of Functions
2
Ratings
IP20
Reach SVHC Compliant
No
Switching Capacity
55kW
Switching Current
16A
Termination
Screw
Width
17.5mm
Compliance
RoHS
Compliant
Datasheet
Finder 80.91.0.240.0000 Datasheet
Download the complete datasheet for Finder 80.91.0.240.0000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

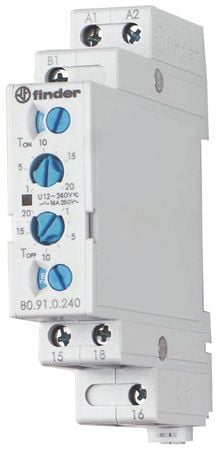

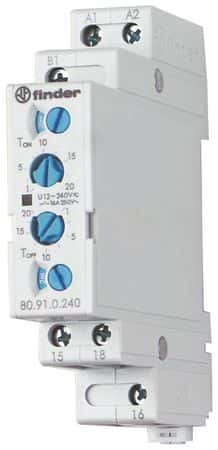

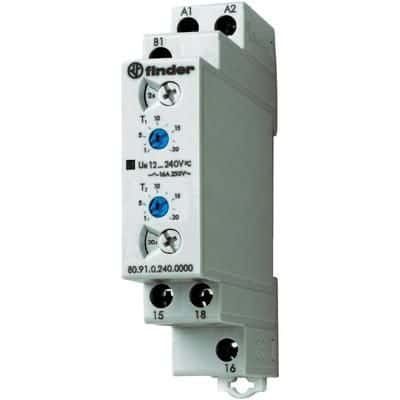

Product Images
