The FT531IA is a single linear voltage regulator from Fremont Micro Devices with a package type of SOT-23-5 and surface mount capability. It operates within a temperature range of -40°C to 85°C and has a dropout voltage of 120mV. The regulator can handle a minimum current limit of 250mA and is available in a cut tape packaging format.
PackageSOT-23-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Fremont Micro Devices FT531IA technical specifications.
General
| Package/Case | SOT-23-5 |
| Dropout Voltage | 120mV |
| Min Current Limit | 250mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Regulators | 1 |
| Output Voltage | 3V |
| Package Quantity | 1 |
| Packaging | Cut Tape |
Compliance
| RoHS | Compliant |
Datasheet
Fremont Micro Devices FT531IA Datasheet
Download the complete datasheet for Fremont Micro Devices FT531IA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

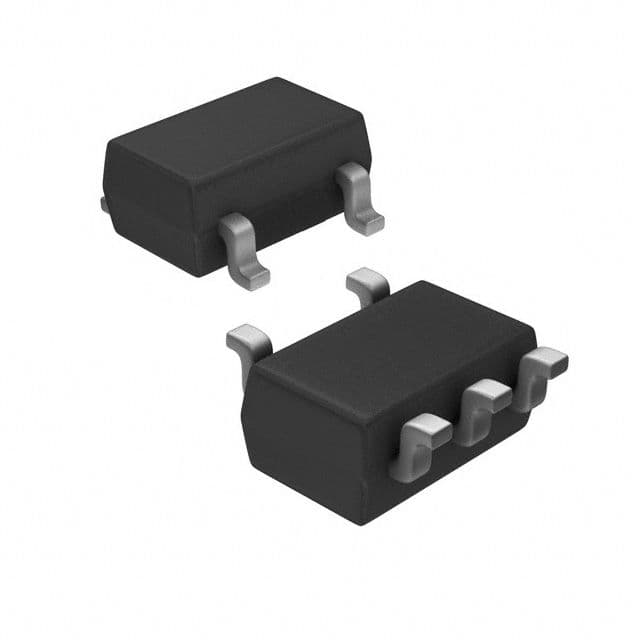

Product Images
