Fujitsu
FTR-B3GA012Z
POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.012A (COIL), 12VDC (COIL), 140mW (COIL), 2A (CONTACT), 220VDC (CONTACT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT
MountingSurface Mount
Power140mW
Quick Jump:
Technical Specifications
Fujitsu FTR-B3GA012Z technical specifications.
General
| Coil Current | 11.67mA |
| Coil Resistance | 1.028kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Material | Gold, Silver |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 220V |
| Mount | Surface Mount |
| Operate Time | 3ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Consumption | 140mW |
| RoHS Compliant | Yes |
| Termination | Solder |
| Throw Configuration | DPDT |
| Weight | 0.8g |
Compliance
| RoHS | Compliant |
Datasheet
Fujitsu FTR-B3GA012Z Datasheet
Download the complete datasheet for Fujitsu FTR-B3GA012Z to view detailed technical specifications.
No datasheet is available for this part.

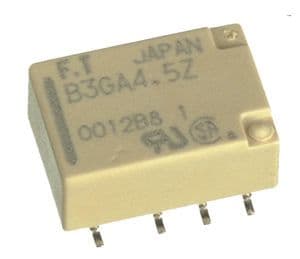

Product Images
