Technical Specifications
Fujitsu FTR-F3AA005E technical specifications.
General
Coil Current
40mA
Coil Resistance
125R
Coil Voltage (AC)
5V
Coil Voltage (DC)
5V
Contact Current Rating
5A
Contact Material
Silver
Depth
7mm
Length
20.3mm
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Operate Time
10ms
Power Consumption
200mW
Resistance
125R
RoHS Compliant
No
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating (AC)
277V
Compliance
RoHS
Not Compliant
Datasheet
Fujitsu FTR-F3AA005E Datasheet
Download the complete datasheet for Fujitsu FTR-F3AA005E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

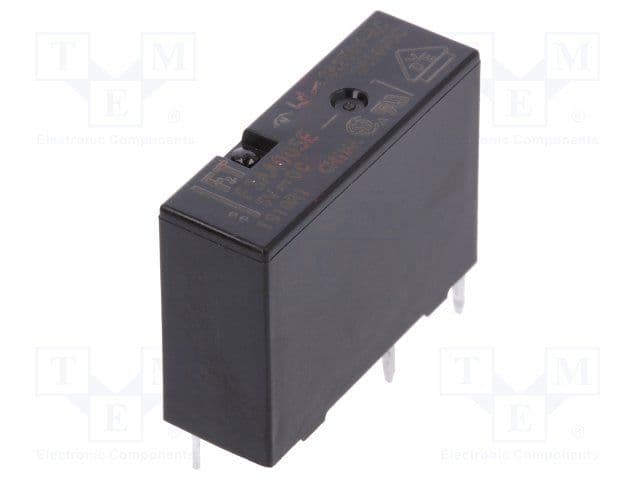

Product Images
