General purpose electromechanical relay featuring SPDT contact configuration. Rated for 8A contact current and 400V AC / 300V DC contact voltage. Coil operates at 24VDC with 245mW power consumption and 2.35kΩ resistance. Through-hole mounting with solder termination. Operating temperature range from -40°C to 85°C. RoHS compliant.
MountingPCB
Quick Jump:
Technical Specifications
Fujitsu JS-24N-K technical specifications.
General
| Application(s) | POWER |
| Coil Current | 10.21mA |
| Coil Power | 245mW |
| Coil Resistance | 2.35kR |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 10A |
| Contact Material | Tin, Gold, Silver |
| Contact Type | 1 change-over |
| Depth | 10mm |
| Height | 12.5mm |
| Length | 29mm |
| Life (Hours) | 50Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | PCB |
| Operate Time | 10ms |
| Radiation Hardening | No |
| Response Time | 10ms |
| RoHS Compliant | Yes |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 400V |
| DC Rated Voltage | 300V |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Fujitsu JS-24N-K Datasheet
Download the complete datasheet for Fujitsu JS-24N-K to view detailed technical specifications.
No datasheet is available for this part.

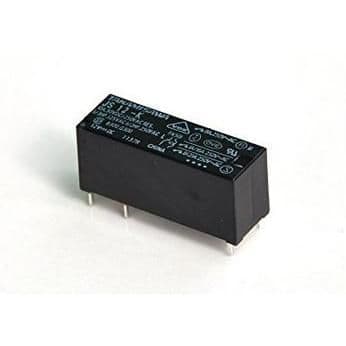

Product Images
