Technical Specifications
Fujitsu JV-24S-KT technical specifications.
General
| Package/Case | DIP |
| Coil Current | 8.33mA |
| Coil Resistance | 2.88kR |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Gold |
| Depth | 10mm |
| Length | 17.5mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 150V |
| Mount | Through Hole |
| Operate Time | 8ms |
| Power Consumption | 200mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 150V |
| Weight | 4.3g |
Compliance
| RoHS | Compliant |
Datasheet
Fujitsu JV-24S-KT Datasheet
Download the complete datasheet for Fujitsu JV-24S-KT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

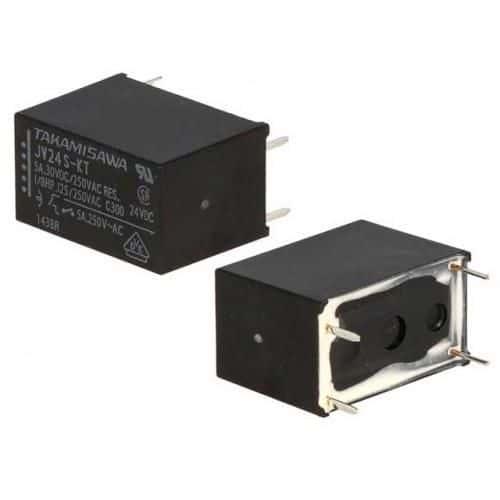

Product Images
