Board mount DC/DC converter, non-isolated, delivering up to 16A output current at 5.5V. Features 92% efficiency and 88W maximum output power. Operates from an 8.3V to 14V DC input range. Includes UVLO, OCP, and OTP protection features. Surface mount package with dimensions of 1.3" length, 0.53" width, and 0.33" height.
PackageSMD/SMT
MountingSurface Mount
Power88W
Quick Jump:
Technical Specifications
GE ATA016A0X43-SRZ technical specifications.
General
| Package/Case | SMD/SMT |
| Current - Output 1 | 16A |
| Depth | 33mm |
| Efficiency | 92% |
| Features | UVLO, OCP, OTP |
| Height | 0.33inch |
| Isolation | Non-Isolated |
| Length | 1.3inch |
| Max Input Voltage (DC) | 14V |
| Min Input Voltage (DC) | 8.3V |
| Max Input Voltage | 14V |
| Min Input Voltage | 8.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 16A |
| Max Output Power | 88W |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 750mV |
| Max Power Dissipation | 88W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 16A |
| Output Power | 88W |
| Output Voltage | 5.5V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Austin SuperLynx™ II |
| Voltage - Output 1 | 5.5V |
| Width | 0.53inch |
Compliance
| RoHS | Compliant |
Datasheet
GE ATA016A0X43-SRZ Datasheet
Download the complete datasheet for GE ATA016A0X43-SRZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

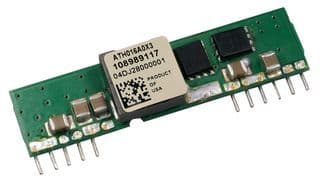

Product Images
