Board mount DC/DC converter with 3A maximum output current and 3.63V output voltage. Features non-isolated, single output, and surface mount (SMD/SMT) package. Operates with input voltages from 2.4V to 5.5V, achieving up to 94% efficiency. Includes UVLO, OCP, and OTP protection features.
PackageSMD/SMT
MountingSurface Mount
Power11W
Quick Jump:
Technical Specifications
GE AXH003A0X-SRZ technical specifications.
General
| Package/Case | SMD/SMT |
| Current - Output 1 | 3A |
| Depth | 11.4mm |
| Efficiency | 94% |
| Features | UVLO, OCP, OTP |
| Height | 0.29inch |
| Isolation | Non-Isolated |
| Length | 20.3mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Power Dissipation | 10W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Power | 11W |
| Output Voltage | 3.63V |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | Austin MiniLynx™ |
| Voltage - Output 1 | 3.6V |
| Width | 0.45inch |
Compliance
| RoHS | Not CompliantNo |
Datasheet
GE AXH003A0X-SRZ Datasheet
Download the complete datasheet for GE AXH003A0X-SRZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

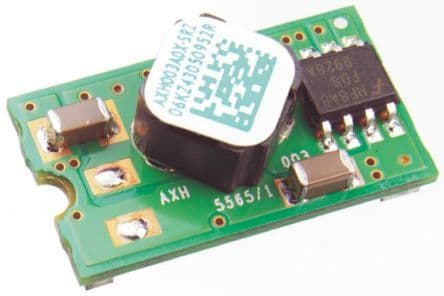

Product Images
