General purpose power relay featuring a 24VDC coil with 8.3mA current and 200mW power consumption. SPST-NO contact configuration with a 3A current rating and silver contact material. Through-hole mounting with PCB termination, measuring 20.39mm length, 7mm width, and 15.01mm height. Operates within a -40°C to 85°C temperature range with 10ms operate time and 4ms release time.
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
TE Connectivity 1-1721081-4 technical specifications.
General
| Coil Current | 8.3mA |
| Coil Power | 200mW |
| Coil Resistance | 2.88kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 3A |
| Contact Material | Silver |
| ELV | Compliant |
| Height | 15.01mm |
| Lead Free | Lead Free |
| Length | 20.39mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operate Time | 10ms |
| Package Quantity | 100 |
| Packaging | Box |
| Power Consumption | 200mW |
| Relay Type | General Purpose |
| Release Time | 4ms |
| RoHS Compliant | No |
| Series | PCJ, OEG |
| Termination | PCB |
| Throw Configuration | SPST |
| Weight | 4g |
| Width | 7mm |
Compliance
| RoHS | Not Compliant |
Datasheet
TE Connectivity 1-1721081-4 Datasheet
Download the complete datasheet for TE Connectivity 1-1721081-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

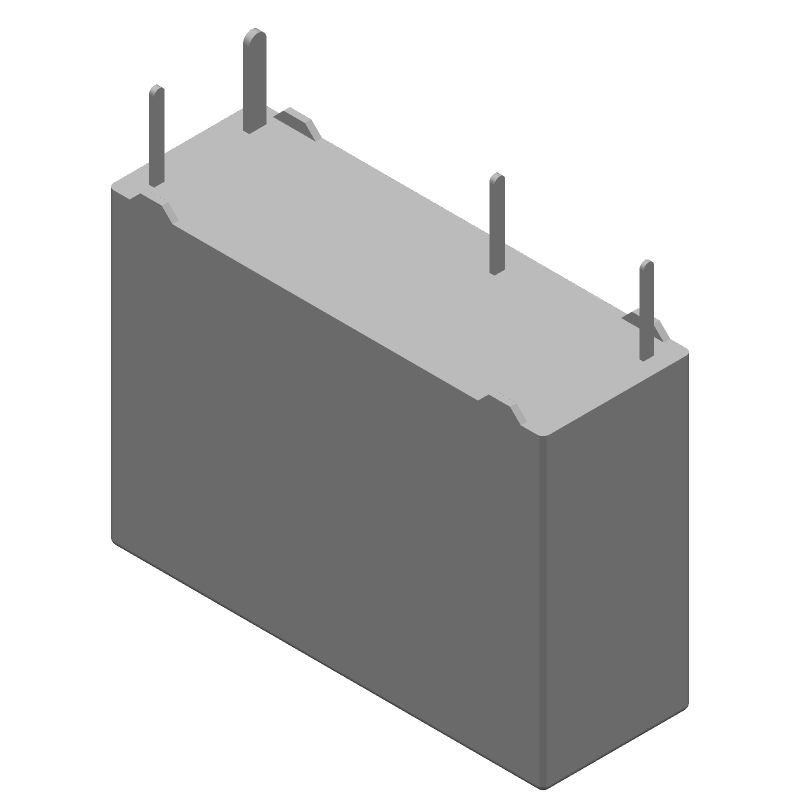

Product Images
