General purpose fixed inductor featuring 220µH inductance with a 10% tolerance. This axial-leaded, through-hole component utilizes a ferrite core and offers a maximum DC current rating of 1.6A and a saturation current of 1.8A. Operating within a temperature range of -55°C to 105°C, it has a DC resistance of 162mΩ. The unshielded design is RoHS compliant and packaged in trays.
PackageAxial
MountingThrough Hole
Inductance220uH
Quick Jump:
Technical Specifications
Bourns 5900-221-RC technical specifications.
General
| Package/Case | Axial |
| Core Material | Ferrite |
| DC Current | 1.6A |
| DC Resistance (DCR) | 162mR |
| Diameter | 0.453inch |
| Inductance | 220uH |
| Lead Diameter | 0.032inch |
| Lead Free | Lead Free |
| Lead/Base Style | Axial |
| Length | 22.86mm |
| Max DC Current | 1.6A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Saturation Current | 1.8A |
| Series | 5900 |
| Shielding | Unshielded |
| Termination | Axial |
| Test Frequency | 1kHz |
| Tolerance | 10% |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 5900-221-RC Datasheet
Download the complete datasheet for Bourns 5900-221-RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

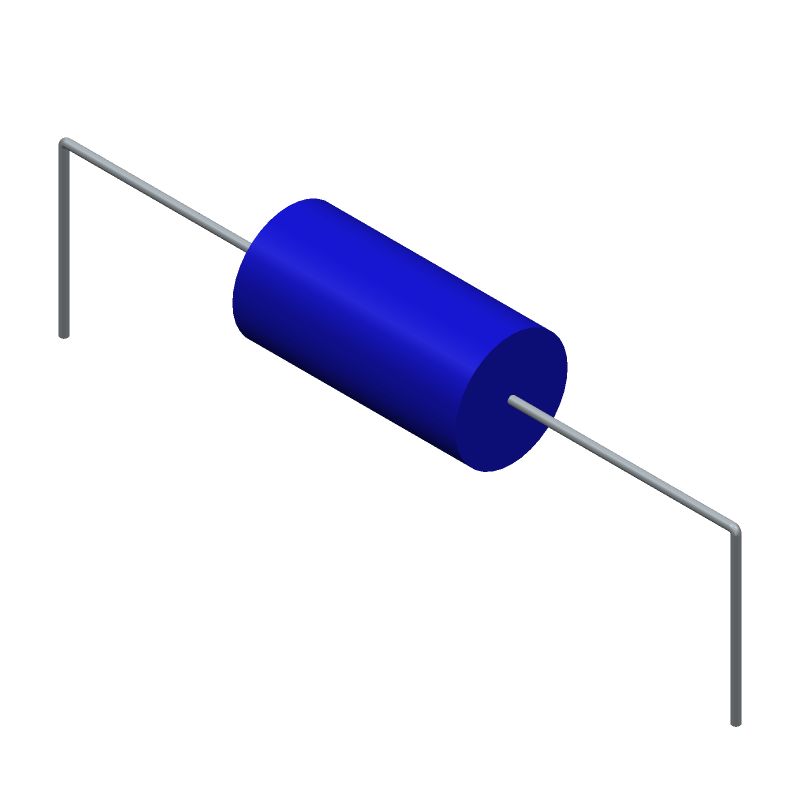

Product Images
