Dual-channel, 12-bit Analog-to-Digital Converter (ADC) with a sampling rate of 65MS/s. Features 2 analog inputs and offers parallel, SPI, and LVDS interface options. Exhibits integral nonlinearity of 2LSB and a signal-to-noise ratio of 71.2dB, with spurious-free dynamic range at 88dB. Operates with a supply voltage range of 3V to 3.6V and is housed in a 48-pin VQFN package. This RoHS compliant component is designed for bipolar operation and has a power consumption of 630mW.
PackageVQFN
PolarityBipolar
Power630mW
Quick Jump:
Technical Specifications

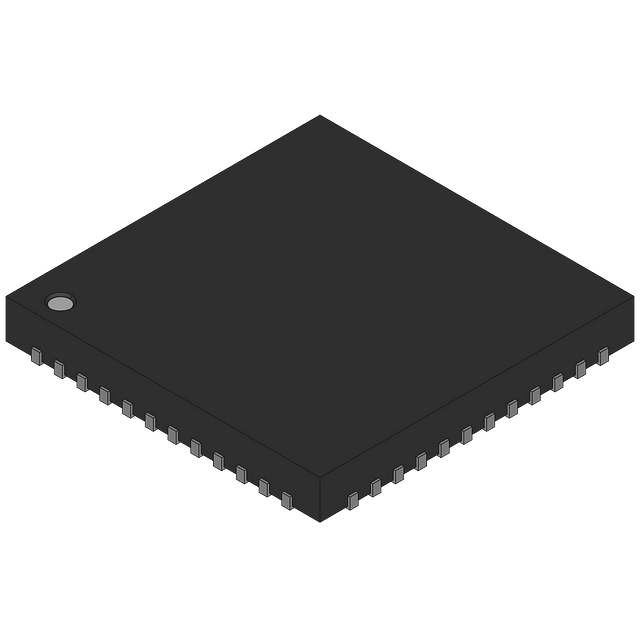

Texas Instruments ADS6222IRGZ25 technical specifications.
General
| Package/Case | VQFN |
| Integral Nonlinearity (INL) | 2LSB |
| Interface | SPI, LVDS, Serial, Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 3.6V |
| Min Supply Voltage (DC) | 3V |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of A/D Converters | 2 |
| Number of Analog Inputs | 2 |
| Number of Bits | 12 |
| Number of Converters | 2 |
| Number of Elements | 2 |
| Number of Inputs | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 25 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 630mW |
| Power Dissipation | 800mW |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 65MS/s |
| Signal to Noise Ratio (SNR) | 71.2dB |
| Spurious-free dynamic range (SFDR) | 88dB |
| Supply Type | Analog, Digital |
