The TE Connectivity CFR200J15R is a 15 ohm, 500V axial leaded carbon film resistor with a tolerance of 5% and a maximum power dissipation of 2W. It is available in a tape and reel packaging and is RoHS compliant. The resistor has a maximum operating temperature of 155°C and a minimum operating temperature of -55°C. It is not Reach SVHC compliant.
PackageAxial
Resistance15R
Voltage Rating500V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity CFR200J15R technical specifications.
General
| Package/Case | Axial |
| Diameter | 5.5mm |
| ELV | Compliant |
| Length | 16mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2W |
| Mount | Axial |
| Number of Resistors | 1 |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 15R |
| Resistance Tolerance | 5% |
| Resistor Type | Thin Film |
| RoHS Compliant | Yes |
| Series | CFR200, Neohm |
| Technology | CARBON FILM |
| Termination | Axial |
| Tolerance | 5% |
| Voltage Rating | 500V |
| DC Rated Voltage | 500V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity CFR200J15R Datasheet
Download the complete datasheet for TE Connectivity CFR200J15R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

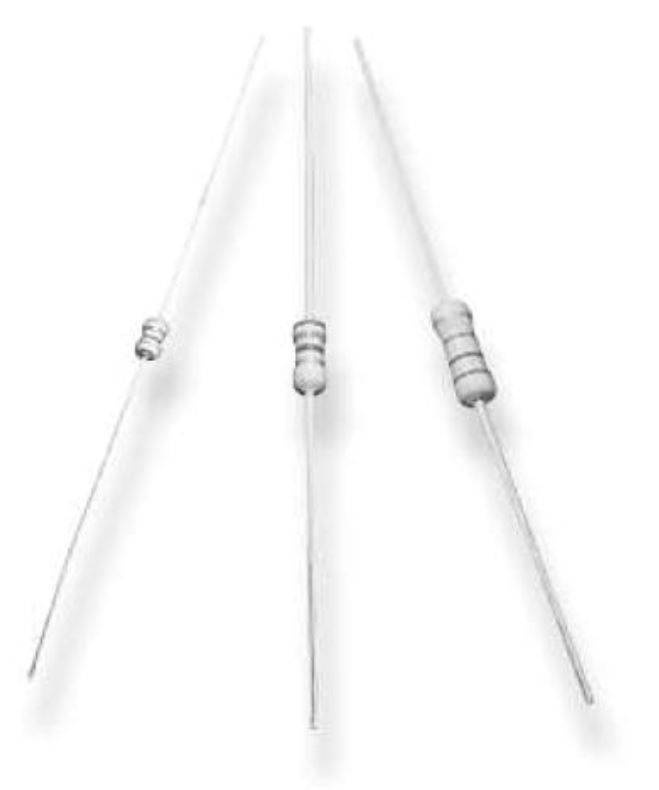

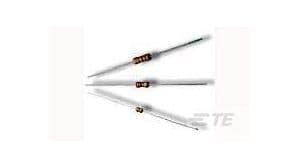

Product Images
