Grayhill
04J-BP-T02
Joystick Switch, 4PST, Momentary, 2A, 28VDC, Solder Terminal, Through Hole-straight,
Current Rating2A
MountingPanel
Quick Jump:
Technical Specifications
Grayhill 04J-BP-T02 technical specifications.
General
Contact Material
Nickel
Contact Plating
Gold
Current Rating
2A
Electrical Life
100000Cycles
Max Operating Temperature
85°C
Mechanical Life
100000Cycles
Min Operating Temperature
-55°C
Mount
Panel
Operating Force
454gf
Ratings
IP68, Waterproof, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
04J
Termination
PC Pin
Voltage Rating (AC)
115V
DC Rated Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Grayhill 04J-BP-T02 Datasheet
Download the complete datasheet for Grayhill 04J-BP-T02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

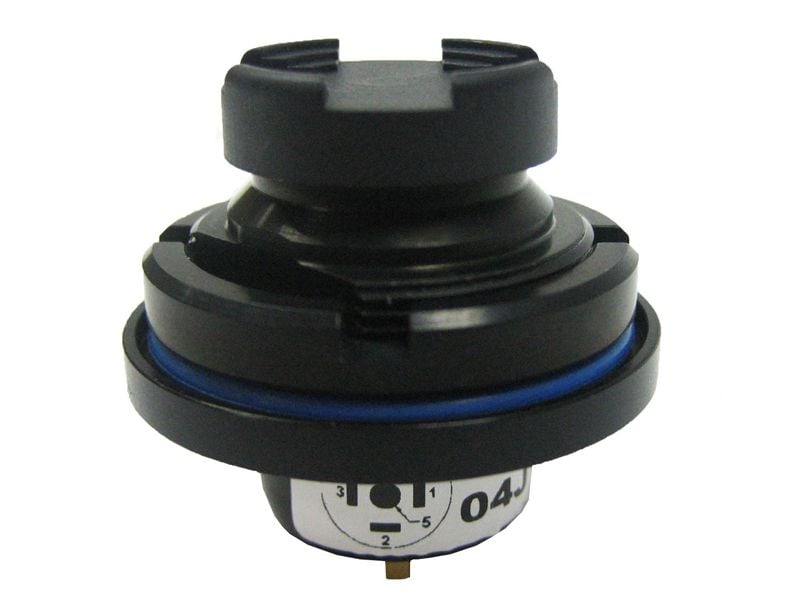

Product Images
