Grayhill
34BW3P11B4M7QT
Switch Toggle ON None ON 3PDT Round Lever PC Pins 5A 250VAC 28VDC PC Mount with Bracket
Current Rating5A
MountingThrough Hole, Vertical, Brackets
Quick Jump:
Technical Specifications
Grayhill 34BW3P11B4M7QT technical specifications.
General
Actuator Length
12.6mm
Actuator Material
Brass, Chrome
Actuator Type
Standard Round
Contact Material
Copper Alloy
Contact Plating
Gold, Silver
Current Rating
5A
Electrical Life
50000Cycles
Illumination Type
Non-Illuminated
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
28V
Mount
Through Hole, Vertical, Brackets
Packaging
Bulk
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
34B
Switch Function
On-On
Termination
PC Pin
Throw Configuration
3PDT
Voltage Rating (AC)
125V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
Grayhill 34BW3P11B4M7QT Datasheet
Download the complete datasheet for Grayhill 34BW3P11B4M7QT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

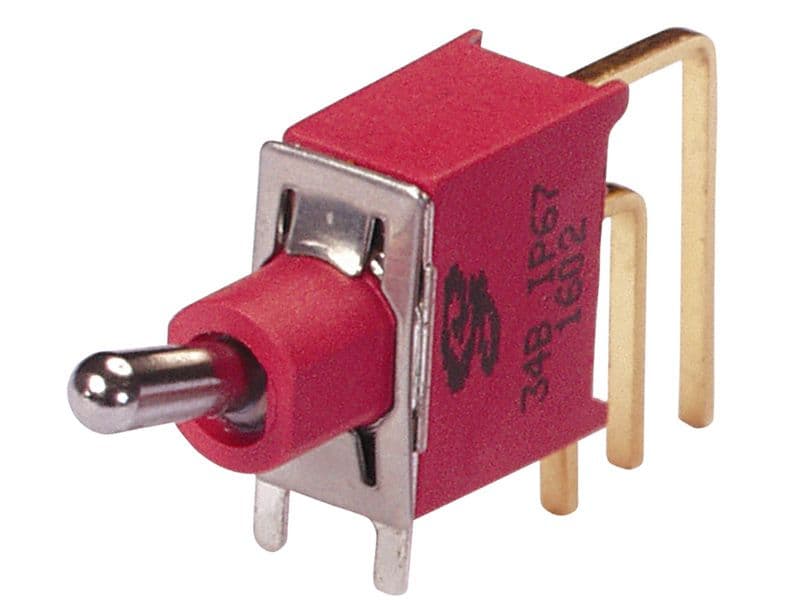

Product Images
