Grayhill
37FML1-AAW21N
Piezo Switch, SPST, Momentary, 0.2A, 24VDC, Wire Terminal, Panel Mount-threaded, ROHS COMPLIANT
PackageAluminum
Current Rating200mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Grayhill 37FML1-AAW21N technical specifications.
General
Actuator Type
Round, Button, Flush
Package/Case
Aluminum
Current Rating
200mA
Electrical Life
50000000Cycles
Illumination Type
LED
Max Operating Temperature
85°C
Mechanical Life
50000000Cycles
Min Operating Temperature
-40°C
Mount
Panel, Front
Package Quantity
1
Packaging
Bulk
Ratings
IP68, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
37F
Switch Function
Off-Mom
Termination
Wire Leads
Throw Configuration
SPST
Voltage Rating (AC)
24V
DC Rated Voltage
24V
Compliance
RoHS
Compliant
Datasheet
Grayhill 37FML1-AAW21N Datasheet
Download the complete datasheet for Grayhill 37FML1-AAW21N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

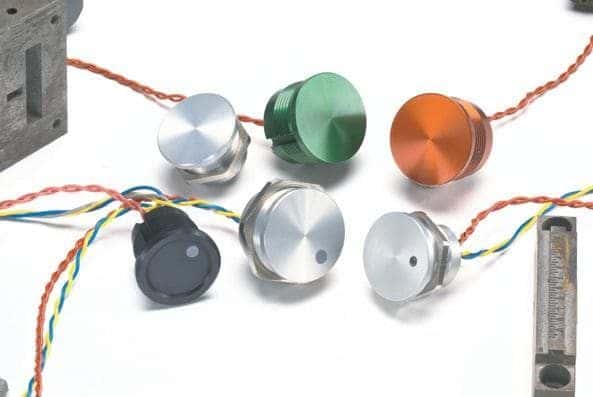

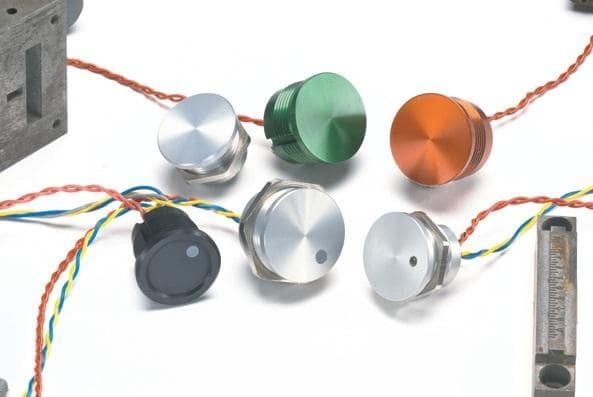

Product Images
