Technical Specifications
Grayhill 39-503BLK technical specifications.
General
| Actuator Material | Thermoplastic |
| Contact Plating | Gold |
| Depth | 15.24mm |
| Diameter | 6.35mm |
| Electrical Life | 1000000Cycles |
| Lead Free | Lead Free |
| Length | 6.35mm |
| Max Current Rating | 150mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 28V |
| Mount | Through Hole |
| Orientation | Right Angle |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | 39 |
| Switch Function | Off-Mom |
| Termination | PC Pin |
| Throw Configuration | SPST |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 39-503BLK Datasheet
Download the complete datasheet for Grayhill 39-503BLK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

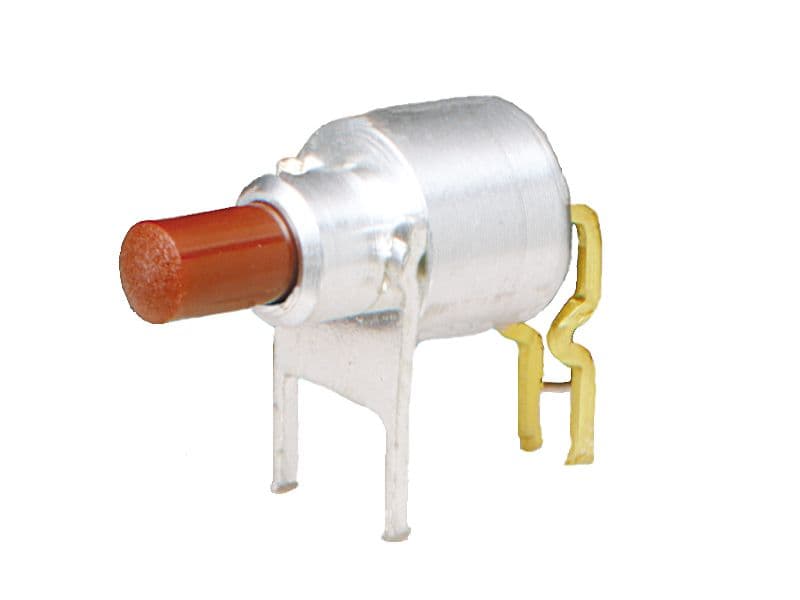

Product Images
