The 47A Series 3PDT On-On Rocker Switch is a panel mount/through hole switch with a maximum operating temperature of 85°C and a minimum operating temperature of -30°C. It features a nylon actuator material and a brass contact material with nickel and gold plating. The switch has a maximum voltage rating of 20V DC and 20V AC, and an electrical life of 40,000 cycles. It is RoHS compliant and available in bulk packaging.
MountingPanel, Flanges, Through Hole
Quick Jump:
Technical Specifications
Grayhill 47A3P1R3M2RT technical specifications.
General
| Actuator Material | Nylon |
| Actuator Type | Concave (Standard V) |
| Contact Material | Brass |
| Contact Plating | Nickel, Gold |
| Depth | 16.51mm |
| Electrical Life | 40000Cycles |
| Length | 41.27mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 20V |
| Max Voltage Rating (DC) | 20V |
| Mount | Panel, Flanges, Through Hole |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | 47A |
| Switch Function | On-On |
| Termination | PC Pins |
| Throw Configuration | 3PDT |
| Voltage Rating (AC) | 20V |
| DC Rated Voltage | 20V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 47A3P1R3M2RT Datasheet
Download the complete datasheet for Grayhill 47A3P1R3M2RT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

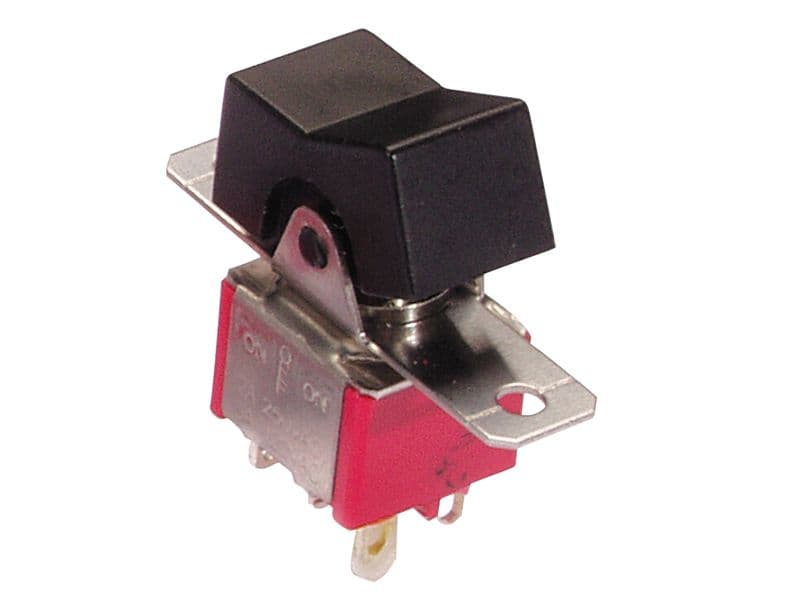

Product Images
