Technical Specifications
Grayhill 47ADP1R3M1RT technical specifications.
General
| Actuator Type | Concave (Standard V) |
| Contact Material | Brass |
| Contact Plating | Nickel, Gold |
| Electrical Life | 40000Cycles |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 20V |
| Mount | Panel, Flanges |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | 47A |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 20V |
| DC Rated Voltage | 20V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 47ADP1R3M1RT Datasheet
Download the complete datasheet for Grayhill 47ADP1R3M1RT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

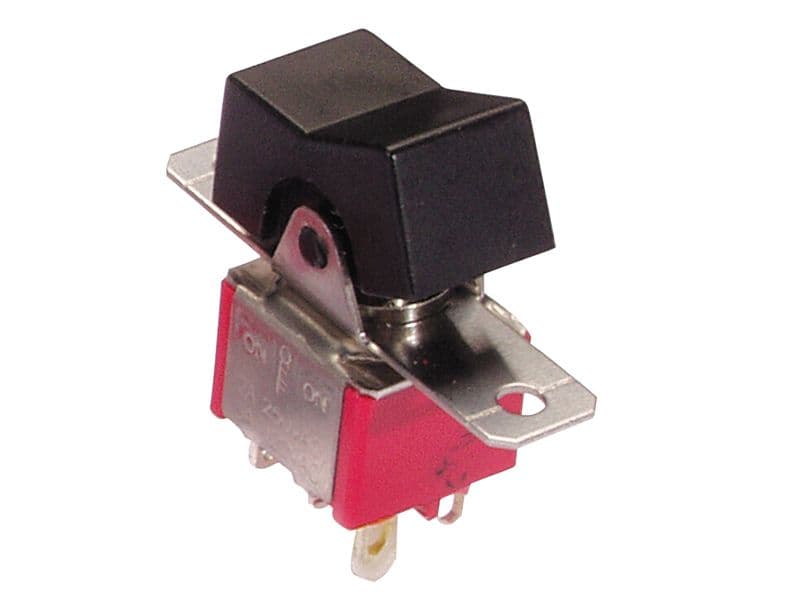

Product Images
